Name: 1P20041
SKU: 36520

Vis alle mål +

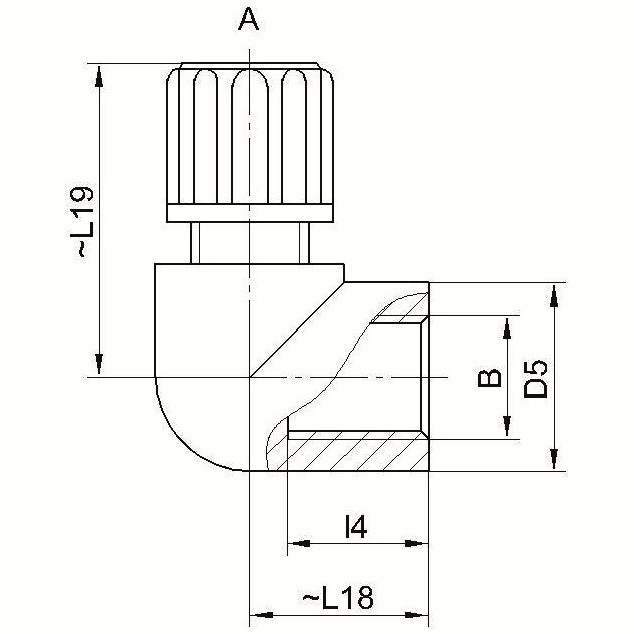

Artikel nummer	A	B	l4	L18	L19	D5	Filer
1P20041-0604-R06	6/4	1/8"	10	17	26	15
1P20041-0604-R08	6/4	1/4"	15	20	29	20
1P20041-0604-R10	6/4	3/8"	15	20	32	25
1P20041-0604-R15	6/4	1/2"	16	23	34	30	CAD/Step
1P20041-0806-R06	8/6	1/8"	10	17	30	15
1P20041-0806-R08	8/6	1/4"	15	20	33	20	CAD/Step
1P20041-0806-R10	8/6	3/8"	15	20	36	25
1P20041-0806-R15	8/6	1/2"	16	23	38	30
1P20041-1006-R06	10/6	1/8"	10	17	36	20
1P20041-1006-R08	10/6	1/4"	15	20	36	20
1P20041-1006-R10	10/6	3/8"	15	20	39	25
1P20041-1006-R15	10/6	1/2"	16	23	41	30
1P20041-1008-R06	10/8	1/8"	10	17	36	20
1P20041-1008-R08	10/8	1/4"	15	20	36	20	CAD/Step
1P20041-1008-R10	10/8	3/8"	15	20	39	25
1P20041-1008-R15	10/8	1/2"	16	23	41	30
1P20041-1208-R06	12/8	1/8"	10	20	40	20
1P20041-1208-R08	12/8	1/4"	15	20	40	20
1P20041-1208-R10	12/8	3/8"	15	20	43	25
1P20041-1208-R15	12/8	1/2"	16	23	45	30
1P20041-1210-R06	12/10	1/8"	10	20	40	20
1P20041-1210-R08	12/10	1/4"	15	20	40	20
1P20041-1210-R10	12/10	3/8"	15	20	43	25
1P20041-1210-R15	12/10	1/2"	16	23	45	30
1P20041-1410-R08	14/10	1/4"	15	23	48	25
1P20041-1410-R10	14/10	3/8"	15	23	48	25
1P20041-1410-R15	14/10	1/2"	16	25	50	30
1P20041-1412-R08	14/12	1/4"	15	23	48	25
1P20041-1412-R10	14/12	3/8"	15	23	48	25
1P20041-1412-R15	14/12	1/2"	16	25	50	30

Datablad

Produktblad

1P20041
