2F30041

PVDF T-stykke, rørtilsl., indv. gevind

Vis alle mål +

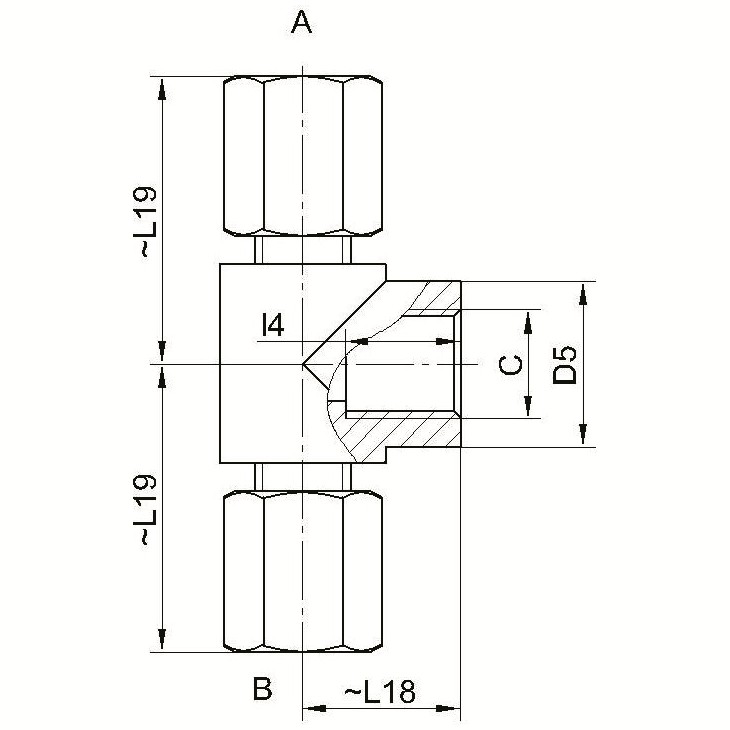

Artikel nummer	A	B	C	l4	L18	L19	D5
2F30041-04-R06	4	4	1/8"	10	17	26	15
2F30041-04-R08	4	4	1/4"	15	20	28	20
2F30041-04-R10	4	4	3/8"	15	20	31	25
2F30041-04-R15	4	4	1/2"	16	20	31	25
2F30041-06-R06	6	6	1/8"	10	17	36	15
2F30041-06-R08	6	6	1/4"	15	20	39	20
2F30041-06-R10	6	6	3/8"	15	20	42	25
2F30041-06-R15	6	6	1/2"	16	20	44	30
2F30041-08-R06	8	8	1/8"	10	17	36	15
2F30041-08-R08	8	8	1/4"	15	20	39	20
2F30041-08-R10	8	8	3/8"	15	20	42	25
2F30041-08-R15	8	8	1/2"	16	20	44	30
2F30041-10-R08	10	10	1/4"	15	23	42	20
2F30041-10-R10	10	10	3/8"	15	23	45	25
2F30041-10-R15	10	10	1/2"	16	23	47	30
2F30041-12-R08	12	12	1/4"	15	23	45	20
2F30041-12-R10	12	12	3/8"	15	23	48	25
2F30041-12-R15	12	12	1/2"	16	23	50	30
2F30041-14-R08	14	14	1/4"	15	23	48	25
2F30041-14-R10	14	14	3/8"	15	23	48	25
2F30041-14-R15	14	14	1/2"	16	25	50	30
