Name: SO 21124
SKU: 37554

Vis alle mål +

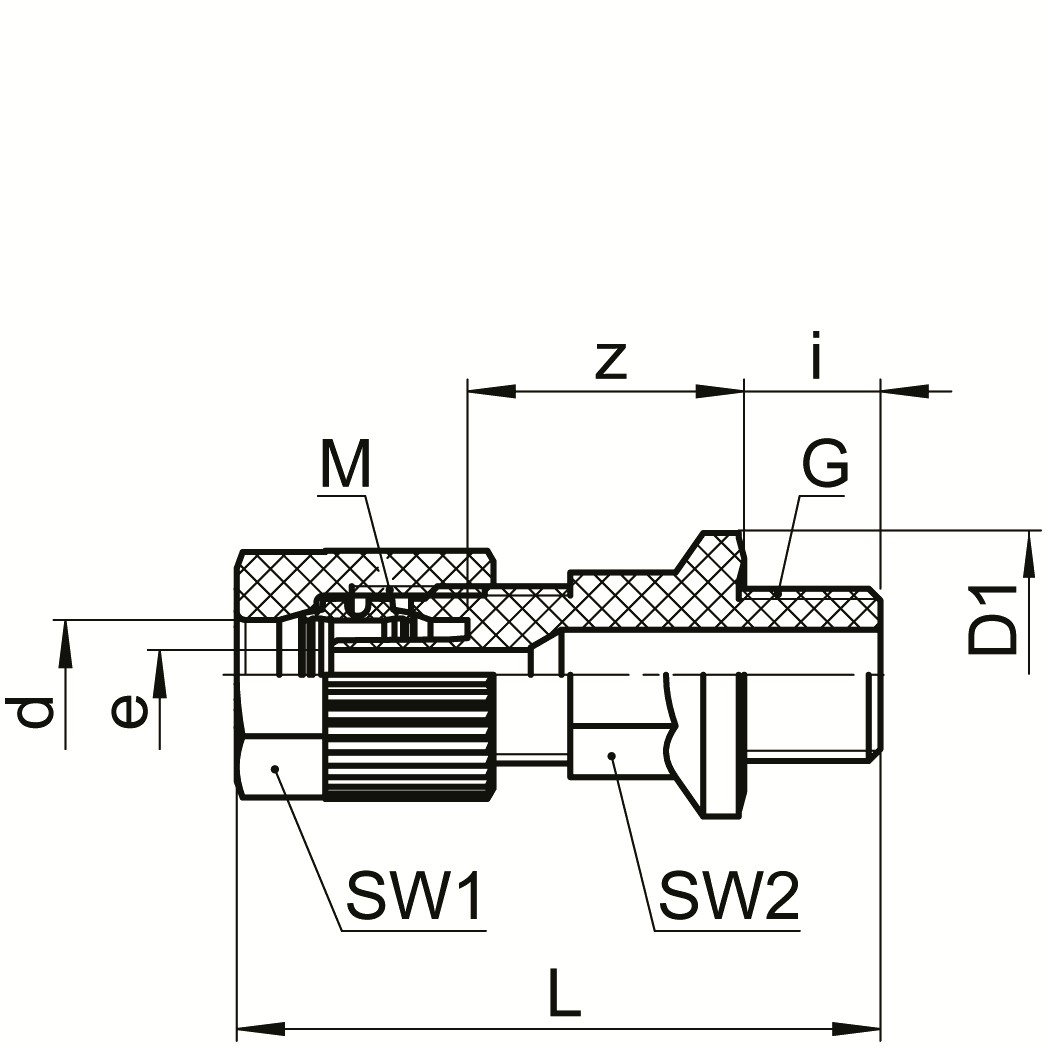

Artikel nummer	VVS-nummer	d	G	bar	L	z	M	SW1	SW2	e	D1
1281161060		4/2	1/8	10	34.5	15.5	10 x 1	12	10	3.1	16
1281161065		4/2	1/4	10	36.5	15.5	10 x 1	12	13	3.1	19.5
1281161068		4/2	3/8	10	37.5	16.5	10 x 1	12	17	3.1	23.5
1281161070		4/2	1/2	10	42.5	19.5	10 x 1	12	19	3.1	30
1281161100		6/4	1/8	10	34.5	15.5	10 x 1	12	10	2.8	16
1281161110		6/4	1/4	10	36.5	15.5	10 x 1	12	13	2.8	19.5
1281161120		6/4	3/8	10	37.5	16.5	10 x 1	12	17	2.8	23.5
1281161125	(VVS 062952.105)	6/4	1/2	10	42.5	19.5	10 x 1	12	19	2.8	29.5
1281161160		8/6	1/8	10	35.5	15.5	12 x 1	14	10	4.8	16
1281161170		8/6	1/4	10	37.5	15.5	12 x 1	14	13	4.8	19.5
1281161180		8/6	3/8	10	38.5	16.5	12 x 1	14	17	4.8	23.5
1281161185		8/6	1/2	10	43.5	19.5	12 x 1	14	19	4.8	29.5
1281161270		10/8	1/4	10	39	15	14 x 1	17	13	6.6	19
1281161280		10/8	3/8	10	40	16	14 x 1	17	17	6.6	23.5
1281161285	(VVS 062952.116)	10/8	1/2	10	45.5	19	14 x 1	17	19	6.6	30
1281161380		12/10	1/4	10	41.5	14	16 x 1	19	13	8	19.5
1281161390		12/10	3/8	10	41.5	15	16 x 1	19	17	8	23
1281161400		12/10	1/2	10	46.5	18	16 x 1	19	19	8	29.5
1281161410		12/9	1/4	10	41.5	14	16 x 1	19	13	7	19
1281161412		12/9	3/8	10	41.5	15	16 x 1	19	17	7	23.5
1281161414		12/9	1/2	10	46.5	18	16 x 1	19	19	7	30

Datablad

Produktblad

SO 21124
