SO 21124 OR

PVDF fitting – Serto

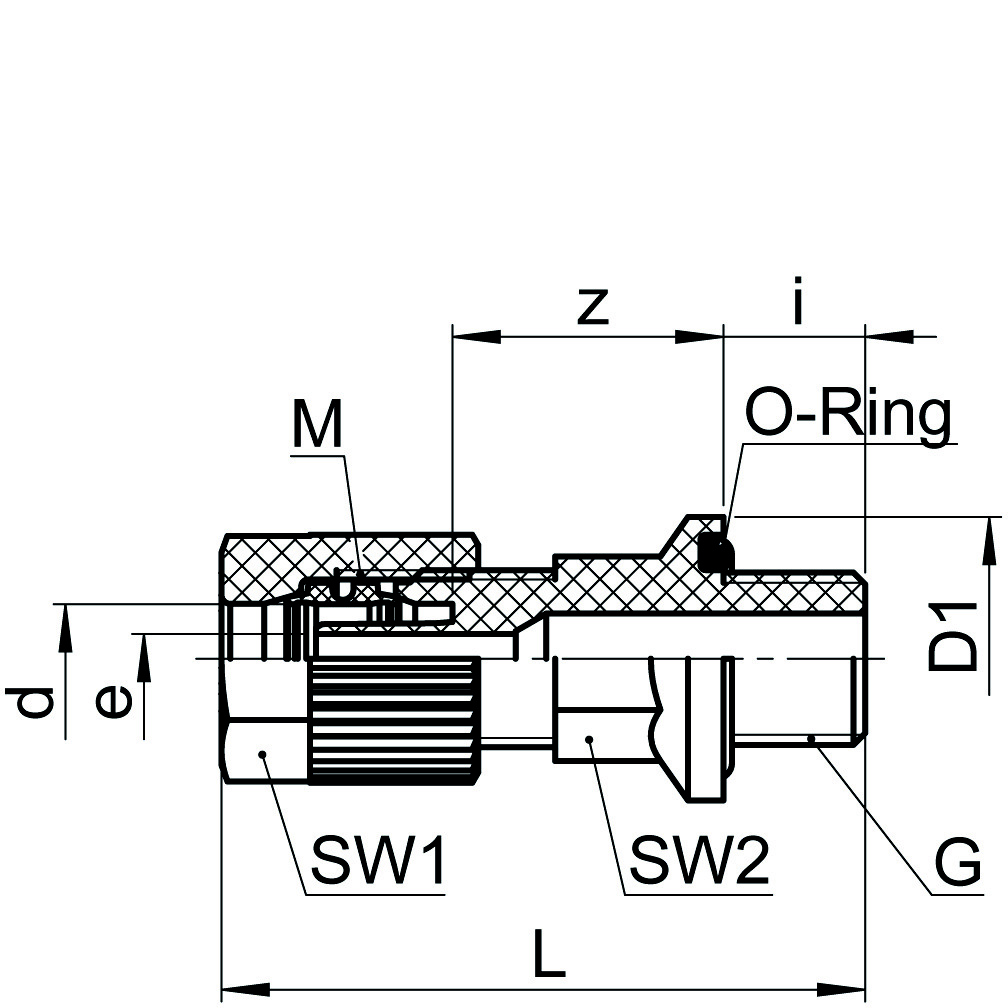

PVDF Unionskobling, cylindrisk udv. gevind, o-ring
  • PVDF Unionskobling
  • G = Cylindrisk udvendigt gevind
  • O-ring i VITON
  • PN10
Vis alle mål +
Artikel nummer VVS-nummer dGbarLzMSW1/SW2ieD1Filer
1281171060 4/21/81034.515.510 x 112/1083.116
1281171065 4/21/41036.515.510 x 112/13103.119.5
1281171068 4/23/81037.516.510 x 112/17103.123.5
1281171070 4/21/21042.519.510 x 112/19123.130
1281171100 6/41/81034.515.510 x 112/1082.816
1281171110 6/41/41036.515.510 x 112/13102.819.5
1281171120 6/43/81037.516.510 x 112/17102.823.5
1281171125 6/41/21042.519.510 x 112/19122.830
1281171160 8/61/81035.515.512 x 114/1084.816
1281171170 8/61/41037.515.512 x 114/13104.819.5
1281171180 8/63/81038.516.512 x 114/17104.823.5
1281171185 8/61/21043.519.512 x 114/19124.830
1281171270 10/81/410391514 x 117/13106.619.5
1281171280 10/83/810401614 x 117/17106.623.5
1281171285 10/81/21045.51914 x 117/19126.629.5
1281171380 12/101/41041.51416 x 119/1310819.5
1281171390 12/103/81041.51516 x 119/1710823.5
1281171400 12/101/21046.51816 x 119/1912829.5
1281171410 12/91/410412416 x 119/1310719.5
1281171412 12/93/810422516 x 119/1710723.5
1281171414 12/91/210473016 x 119/1912730
Datablad
