Name: SO 23221
SKU: 37839

Vis alle mål +

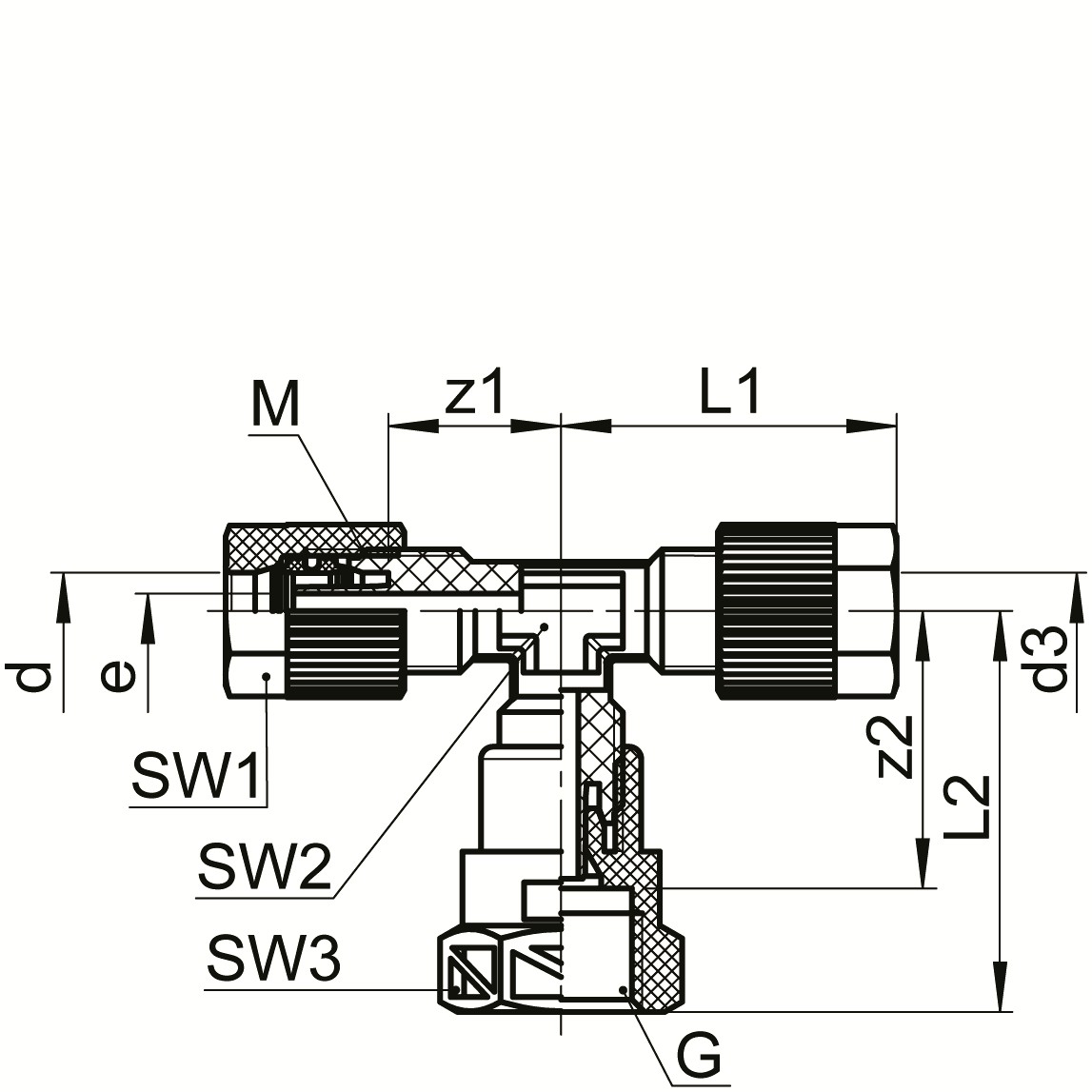

Artikel nummer	d	e	G	bar	M	SW1/SW2	SW3	L1/L2	z1	z2
1283201060	4/2	4	1/8	10	10 x 1	12/8	14	24,5/36	13.5	27
1283201065	4/2	4	1/8	10	10 x 1	12/8	17	24,5/37	13.5	27
1283201100	6/4	6	1/8	10	10 x 1	12/8	14	24,5/36	13.5	27
1283201110	6/4	6	1/4	10	10 x 1	12/8	17	24,5/37	13.5	27
1283201170	8/6	8	1/4	10	12 x 1	14/10	17	29/39	17	29
1283201270	10/8	10	1/4	10	14 x 1	17/12	17	32,5/38,5	18.5	28.5
1283201280	10/8	10	3/8	10	14 x 1	17/12	22	32,5/44	18.5	33
1283201320	10/7	10	1/4	10	14 x 1	17/12	19	32,5/38,5	18.5	28.5
1283201330	10/7	10	3/8	10	14 x 1	17/12	22	32,5/44	18.5	33
1283201390	12/10	12	3/8	10	16 x 1	19/13	22	34/44,5	17.5	33.5
1283201400	12/10	12	1/2	10	16 x 1	19/13	27	34/48,5	17.5	34.5
1283201412	12/9	12	3/8	10	16 x 1	19/13	22	34/44,5	17.5	33.5
1283201414	12/9	12	1/2	10	16 x 1	19/13	27	34/48,5	17.5	34.5
1283201564	16/13	16	3/8	10	22 x 1,5	24/19	27	50,5/61,5	28	50.5
1283201566	16/13	16	1/2	10	22 x 1,5	24/19	27	50,5/61,5	28	47.5
1283201568	16/13	16	3/4	10	22 x 1,5	24/19	32	50,5/61,5	28	46.5

Datablad

Produktblad

SO 23221
