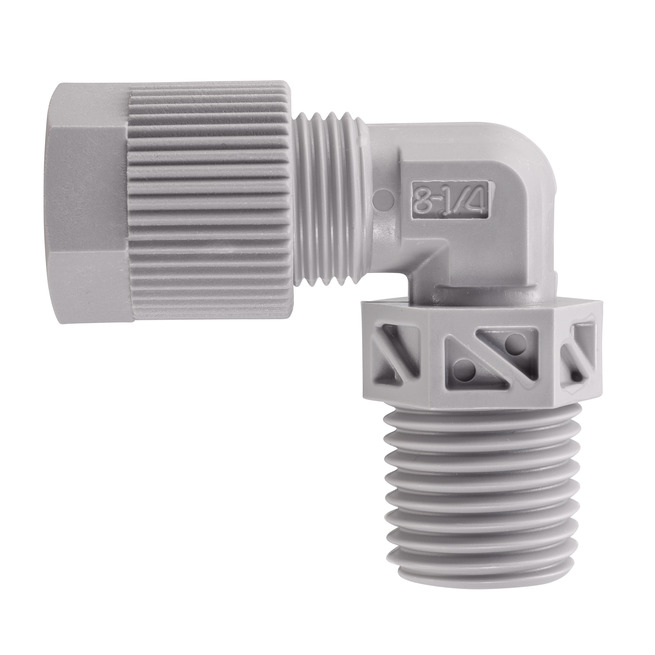

Name: SO 32421
SKU: 35767

Vis alle mål +

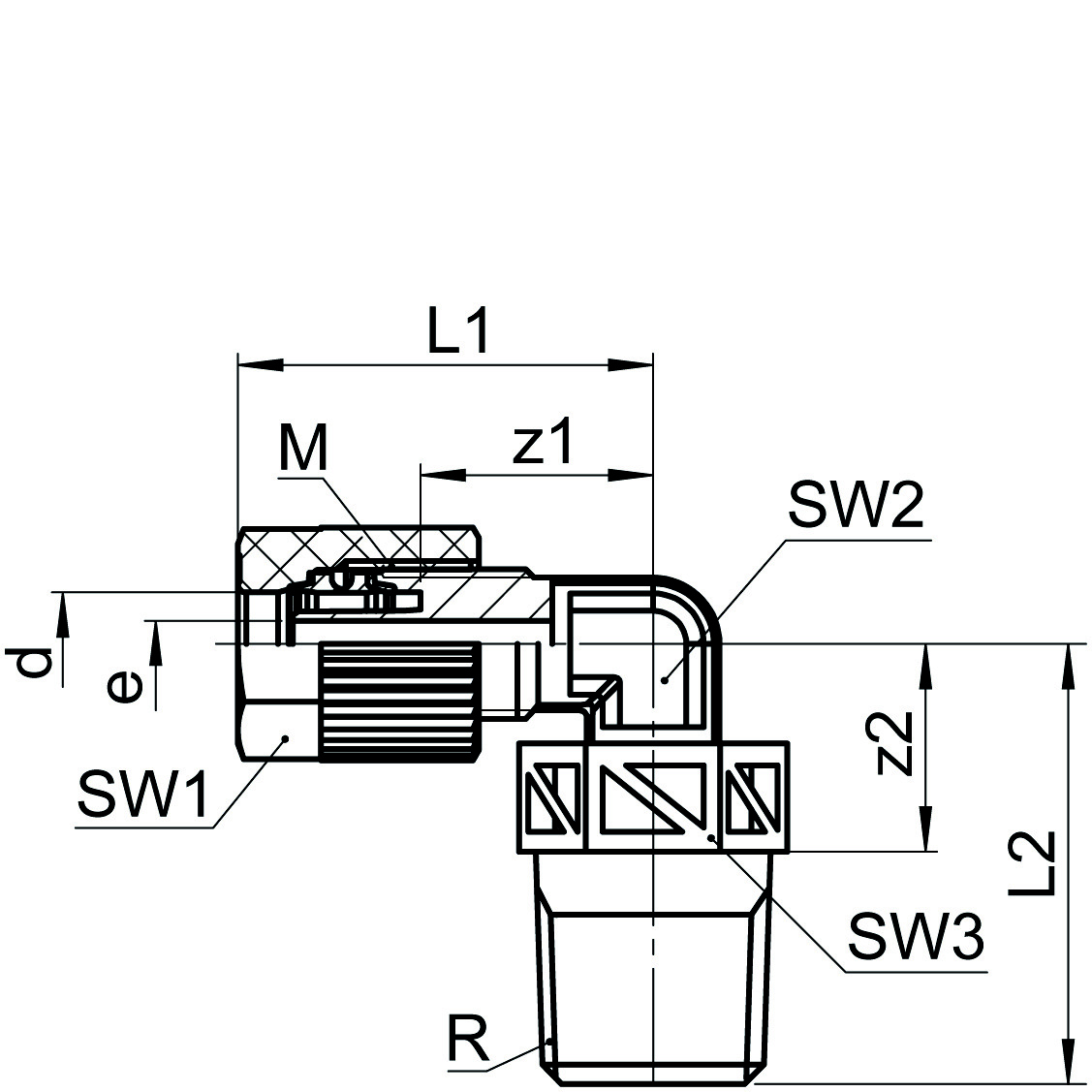

Artikel nummer	d	R	bar	e	M	SW1	SW2	L1	L2	z1/z2
1682401100	6/4	1/8"	10	2.8	10 x 1	12	8	25	19	14/11
1682401110	6/4	1/4"	10	2.8	10 x 1	12	8	25	24.5	14/12,5
1682401160	8/6	1/8"	10	4.8	12 x 1	14	10	26.5	20	14,5/12
1682401170	8/6	1/4"	10	4.8	12 x 1	14	10	26.5	25.5	14,5/13,5
1682401270	10/8	1/4"	10	6.6	14 x 1	17	12	30	26.5	16/14,5
1682401280	10/8	3/8"	10	6.6	14 x 1	17	12	29.5	27	15,5/15
1682401320	10/7	1/4"	10	5.6	14 x 1	17	12	30	26.5	16/14,5
1682401330	10/7	3/8"	10	5.6	14 x 1	17	12	30	27	16/15
1682401380	12/10	1/4"	10	8	16 x 1	19	13	32.5	27.5	16/15,5
1682401390	12/10	3/8"	10	8	16 x 1	19	13	32.5	28	16/16
1682401400	12/10	1/2"	10	8	16 x 1	19	13	32.5	35.5	16/19,5
1682401410	12/9	1/4"	10	7	16 x 1	19	13	32.5	27.5	16/15,5
1682401412	12/9	3/8"	10	7	16 x 1	19	13	32.5	28	16/16
1682401414	12/9	1/2"	10	7	16 x 1	19	13	32.5	35.5	16/19,5
1682402100	6/4	1/8"	10	2.8	10 x 1	12	8	25	21	14/11
1682402110	6/4	1/4"	10	2.8	10 x 1	12	8	25	26.5	14/12,5
1682402160	8/6	1/8"	10	4.8	12 x 1	14	10	26.5	22	14,5/12
1682402170	8/6	1/4"	10	4.8	12 x 1	14	10	26.5	27.5	14,5/13,5
1682402270	10/8	1/4"	10	6.6	14 x 1	17	12	30	28.5	16/14,5
1682402280	10/8	3/8"	10	6.6	14 x 1	17	12	30	29	15/15,5
1682402320	10/7	1/4"	10	5.6	14 x 1	17	12	30	28.5	16/14,5
1682402330	10/7	3/8"	10	5.6	14 x 1	17	12	30	29	16/15

Datablad

Produktblad

SO 32421
