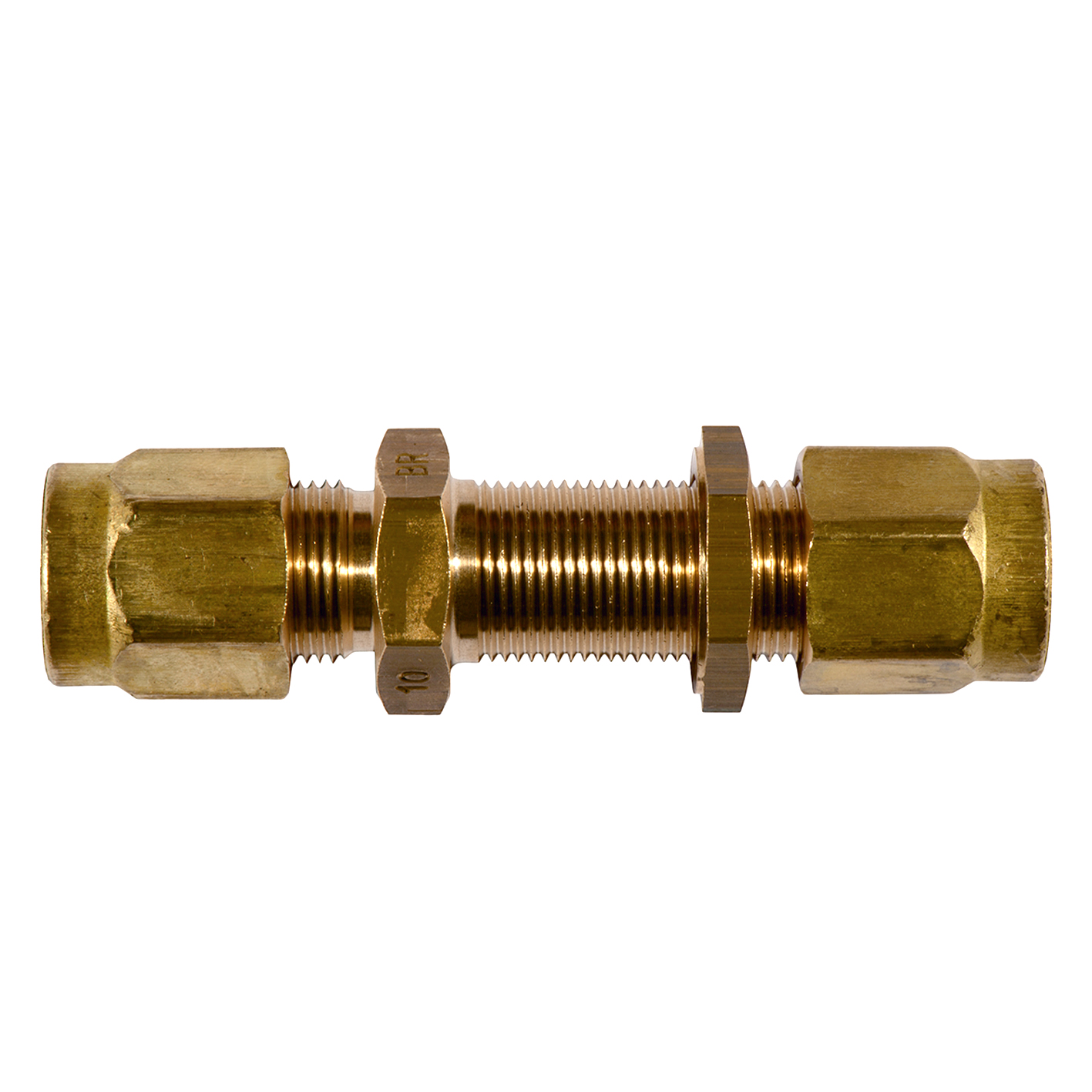

Name: SO 41524
SKU: 40857

Vis alle mål +

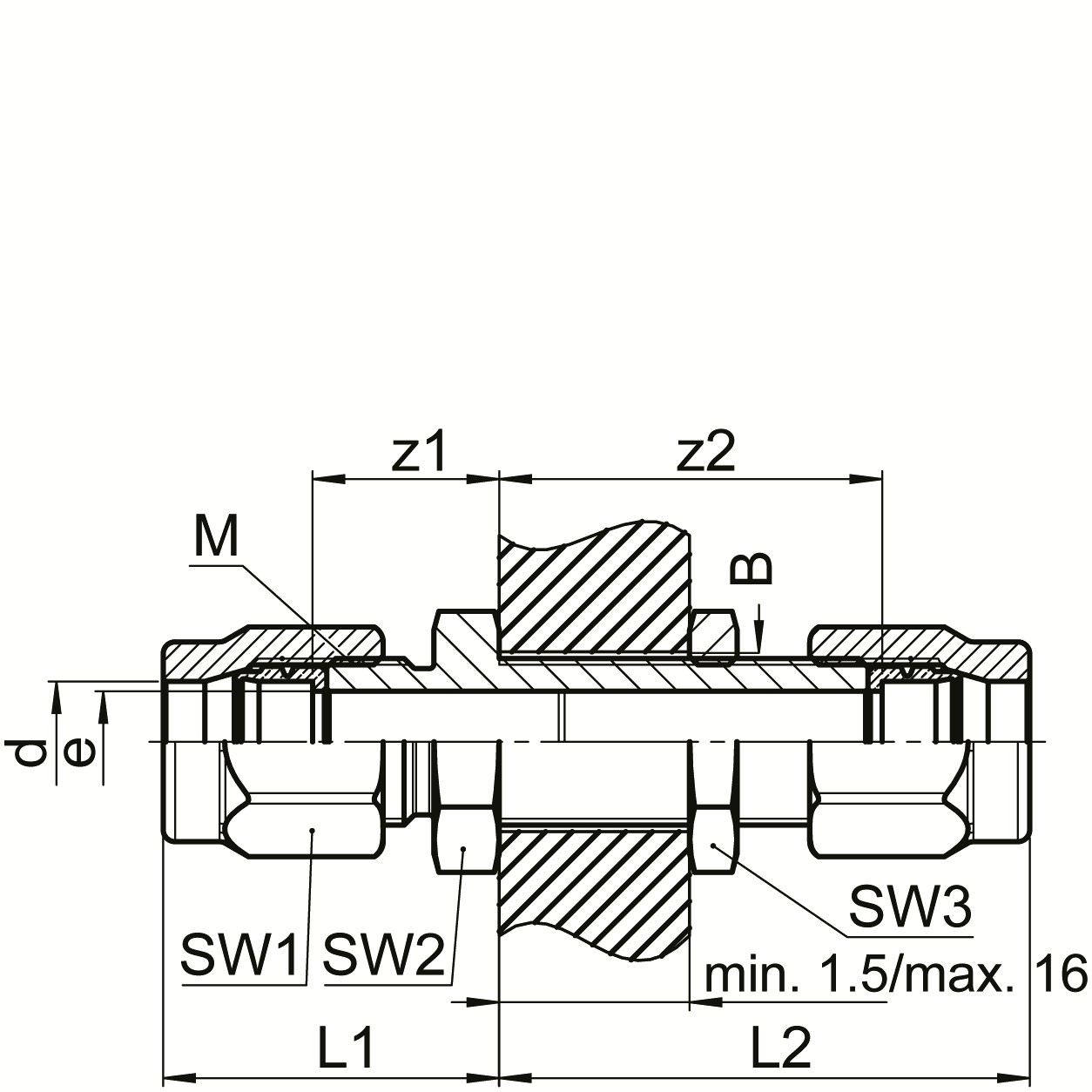

Artikel nummer	d	bar	B	M	SW1/SW2	SW3	L1/L2	z1	z2	e
0181540040	4	125	10.5	10 x 1	12/14	14	21/37,5	13.5	30	3.4
0181540050	5	125	10.5	10 x 1	12/14	14	21/37,5	13.5	30	4
0181540060	6	250	10.5	10 x 1	12/14	14	21/37,5	13.5	30	4.5
0181540080	8	150	12.5	12 x 1	14/17	17	23/40	15	32	6.5
0181540100	10	125	14.5	14 x 1	17/19	19	25,5/42	15.5	32	8.5
0181540120	12	100	16.5	16 x 1	19/22	19	27/43	16	32	10
0181540130	13	40	20.5	20 x 1,5	24/27	27	32/46	19.5	33.5	11
0181540140	14	40	20.5	20 x 1,5	24/27	27	32/46	19.5	33.5	12
0181540150	15	40	20.5	20 x 1,5	24/27	27	32/46	19.5	33.5	13
0181540160	16	40	24.5	24 x 1,5	27/30	27	33/47,5	19.5	33.5	14
0181540170	17	40	24.5	24 x 1,5	27/30	27	33/47,5	19.5	33.5	15
0181540180	18	40	24.5	24 x 1,5	27/30	27	33/47,5	19.5	33.5	15
0181540190	19	40	28.5	28 x 1,5	32/36	36	38/53	20.5	35.5	16
0181540220	22	40	28.5	28 x 1,5	32/36	36	38/53	20.5	35.5	19
0181540063	6.35	250	10.5	10 x 1	12/14	14	21/37,5	13.5	30	4.5
0181540095	9.52	125	14.5	14 x 1	17/19	19	25,5/42	15.5	32	8
0181540127	12.7	40	20.5	20 x 1,5	24/27	27	32/46	19.5	33.5	11
