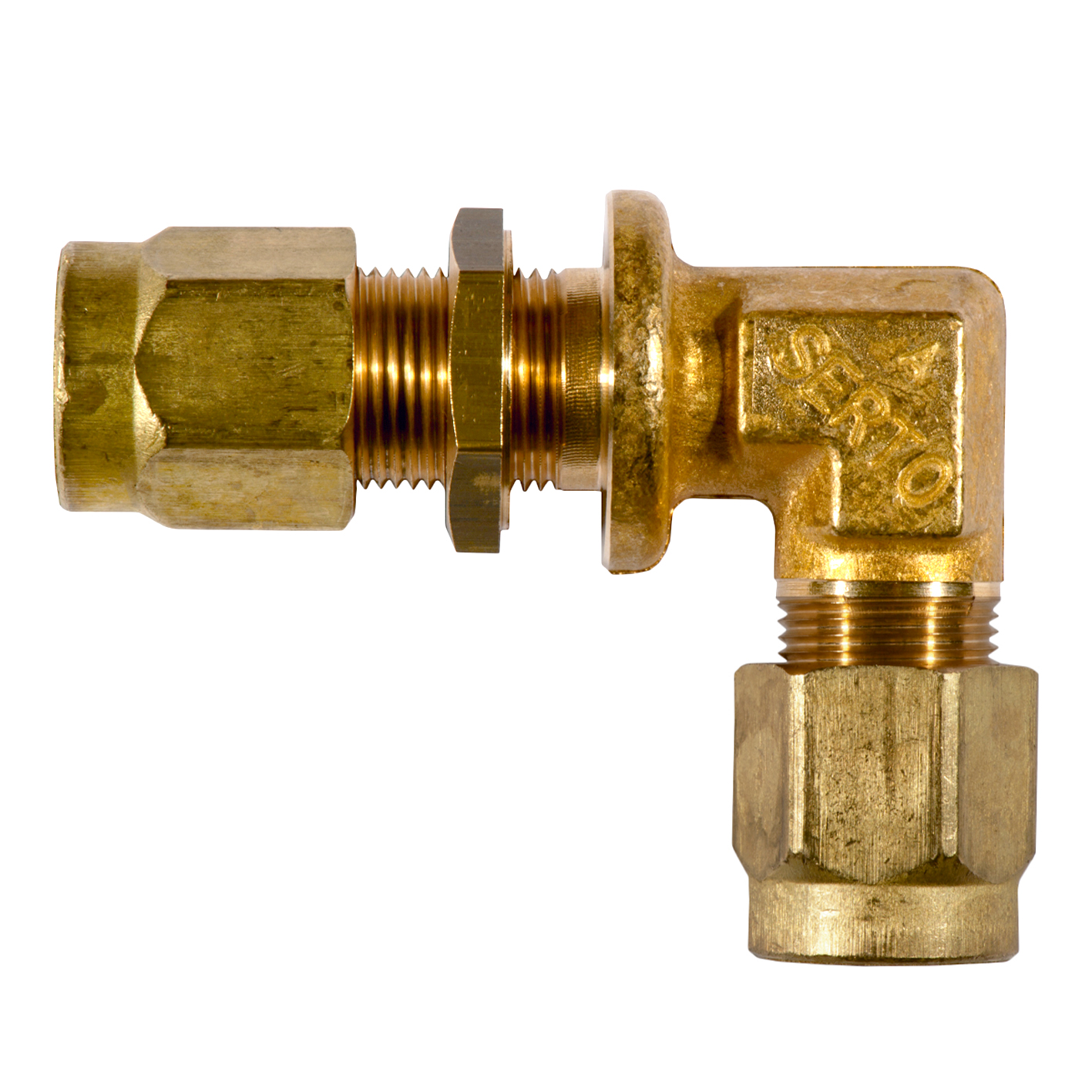

SO 42721 RED

Messing Fitting – Serto

Messing Skotgennemføring 90°, reduceret
  • Messing Skotgennemføring
  • Reducer et
  • Vinkel kobling 90°
  • Godstykkelse max. 5 mm

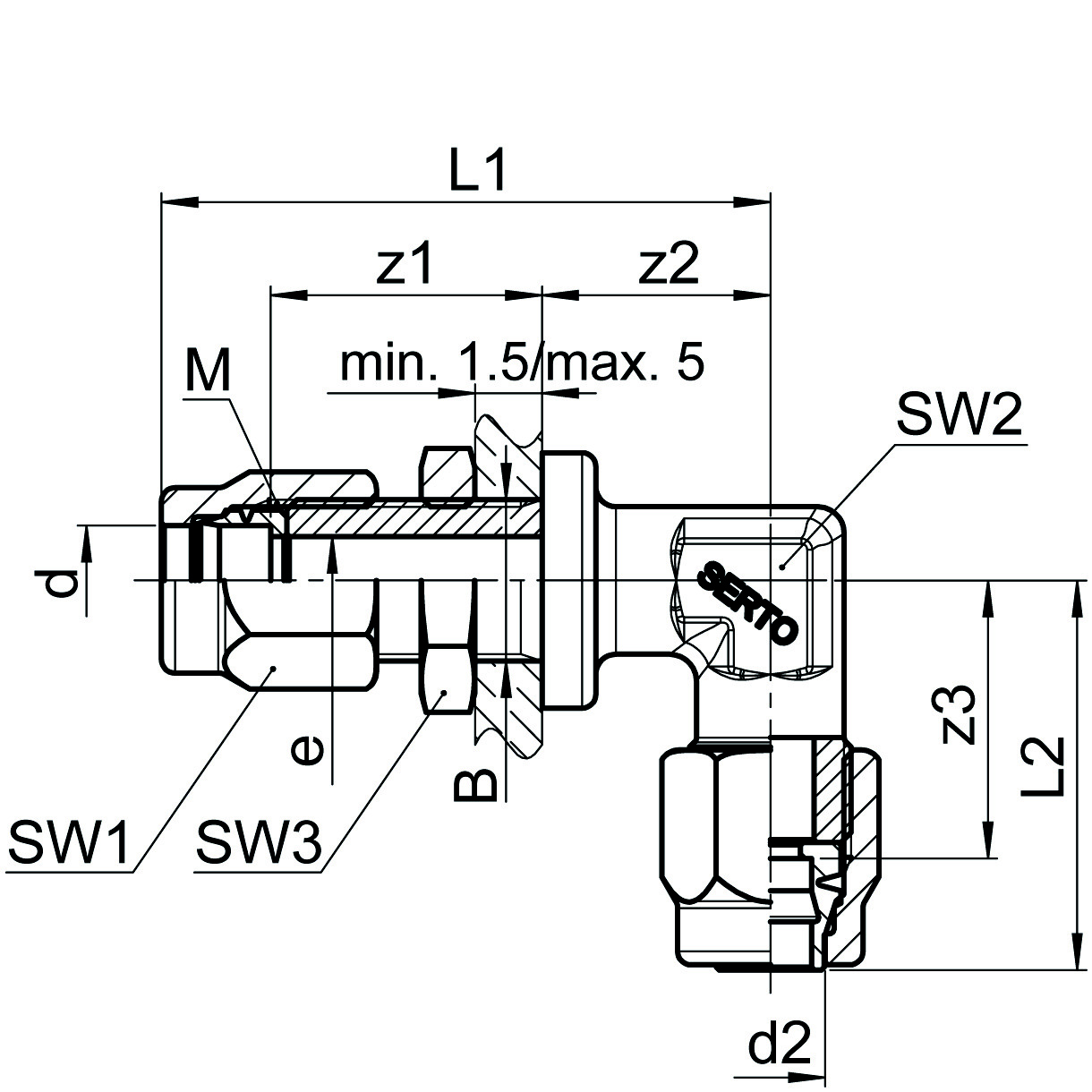

Vis alle mål +
Artikel nummer VVS-nummer dd2barMSW1/SW2/SW3L1/L2Bez1/z2z3Filer
0182704110 6410010 x 112/10/1440,5/25,5103.419/1418
0182704117 6510010 x 112/10/1440,5/25,510419/1418
0182704140 8625012 x 114/11/1745/28,5124.520/1720.5
0182704190 10815014 x 117/17/1949/33,5146.521/1823.5
0182704240 121010016 x 119/17/1950/34,5168.521/1823.5
0182704420 15124020 x 1,524/19/2757/38201024,5/2025.5
0182704430 15134020 x 1,524/19/2757/38201124,5/2025.5
0182704440 15144020 x 1,524/19/2757/38201224,5/2025.5
0182704119 66.3525010 x 112/10/1440,5/25,5104.519/1418
0182704197 109.5212514 x 117/17/1949/33,514821/1823.5
0182704427 1512.74020 x 1,524/19/2757/38201124,5/2025.5
Datablad
