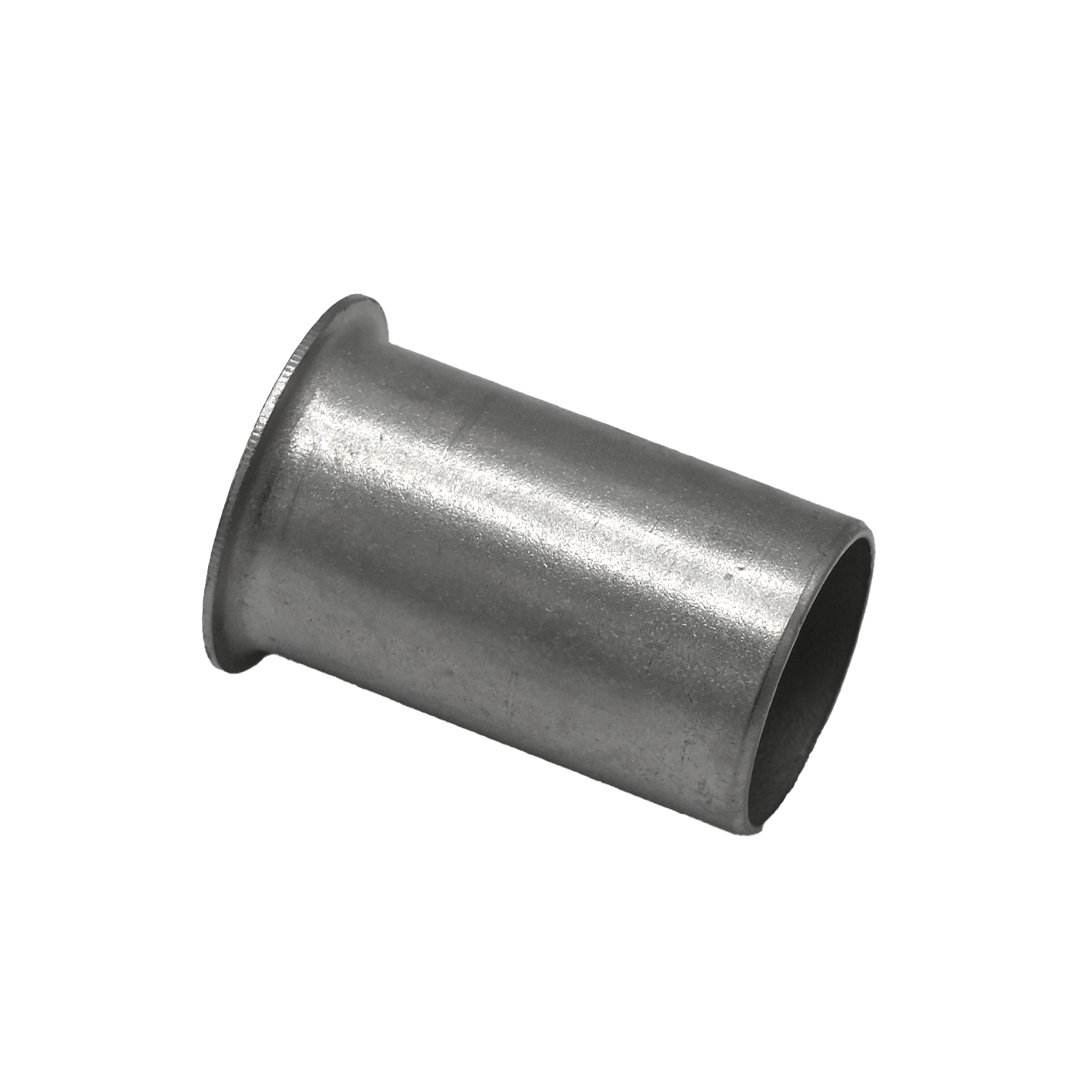

Name: SO 50003
SKU: 39626

Vis alle mål +

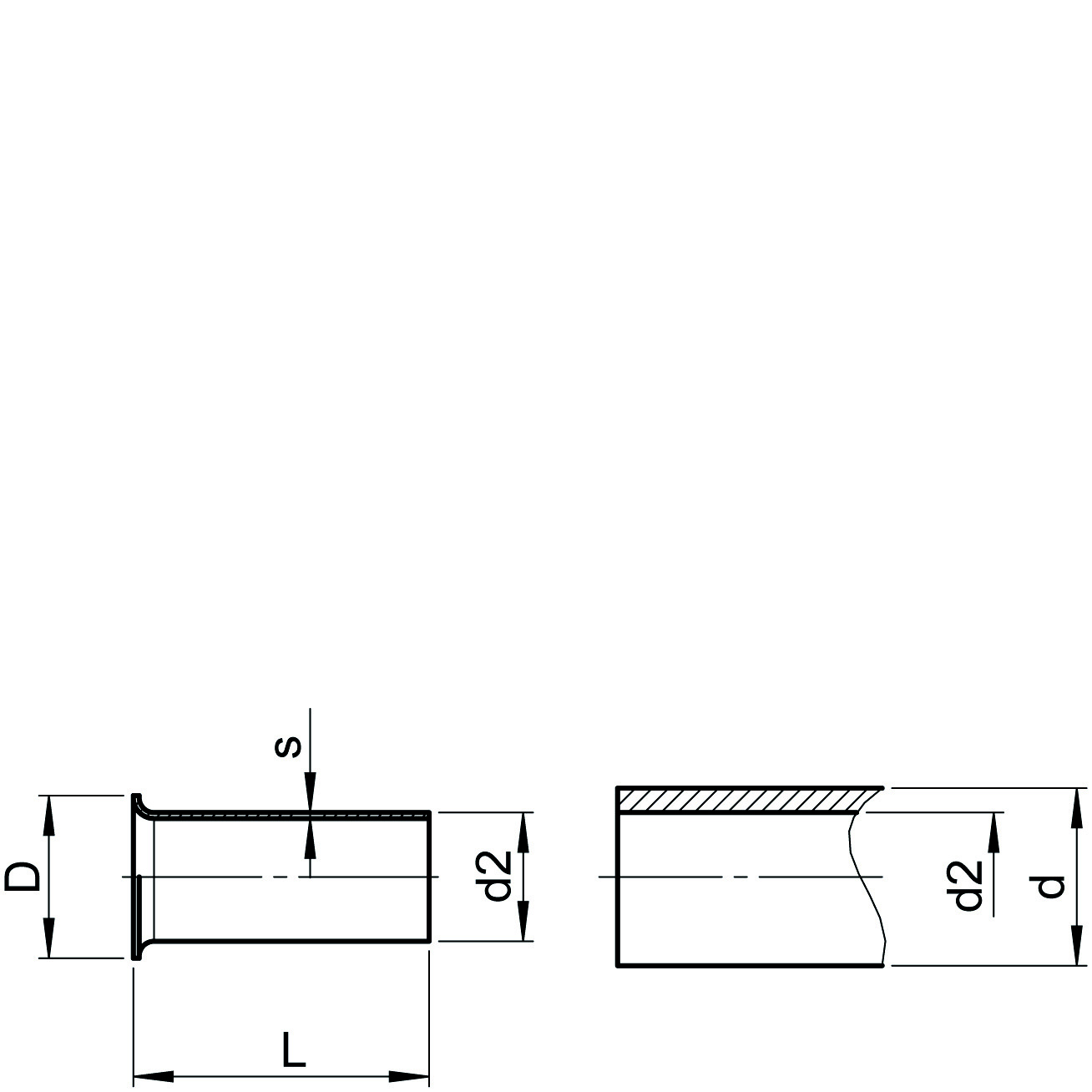

Artikel nummer	VVS-nummer	dxd1	L	s	D
0560031020		3×2	6	0.2	2.8
0560031030		4×2	8	0.2	3.8
0560031035		4x2,5	8	0.2	3.8
0560031040		4×3	8	0.2	3.8
0560031060		5×3	8	0.2	3.8
0560031080		5×4	9	0.2	4.5
0560031100		6×3	9	0.2	4.5
0560031110	033583006	6×4	10	0.2	5
0560031114		6x4,5	10	0.2	5.5
0560031117		6×5	10	0.25	5.5
0560031136		8×5	10	0.25	7.5
0560031140	033583008	8×6	12	0.25	7.5
0560031150		8×7	12	0.3	7.5
0560031160		9.52x6.22	15	0.3	9
0560031180	033583010	10×7	12	0.3	9.5
0560031190	033583010	10×8	15	0.3	9.5
0560031195	(VVS 033583.010)	10×9	15	0.4	9.5
0560031230		12×9	18	0.4	11.5
0560031240	033583012	12×10	18	0.4	11.5
0560031254		12×10,4	18	0.4	11.5
0560031340		14×12	20	0.5	13.5
0560031420		15×12	20	0.5	14.5
0560031430		15×13	20	0.5	15.5
0560031500		16×14	24	0.6	17.5
0560031600		18×14	24	0.6	17.5
0560031610		18×15	24	0.6	17.5
0560031620		18×16	28	0.6	21.5
0560031760		22×19	28	0.6	21.5
0560031775		22×20	34	0.6	27.5
0560031910		28	25	0.6	27.5

Datablad

Produktblad

SO 50003
