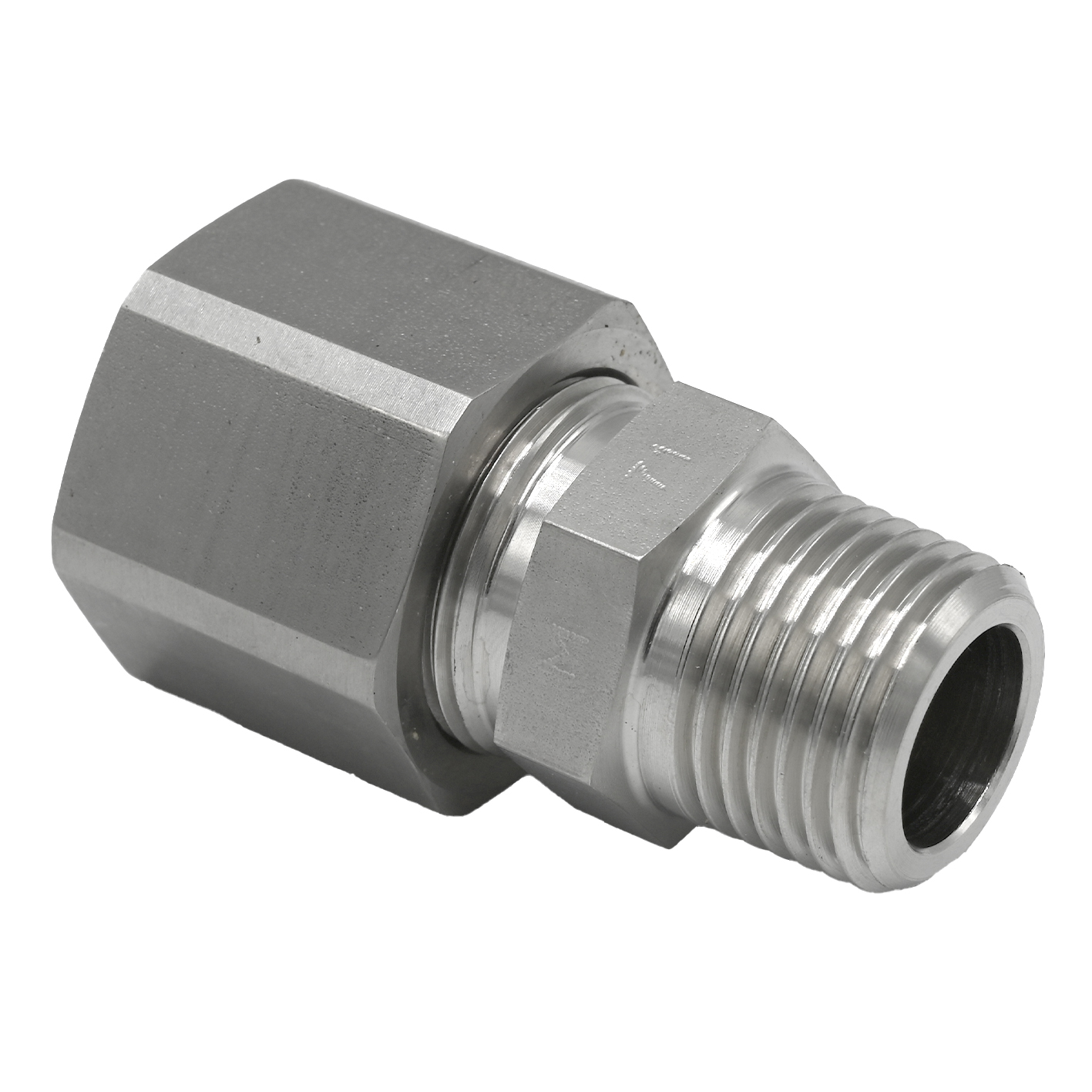

Name: SO 51121
SKU: 38936

Vis alle mål +

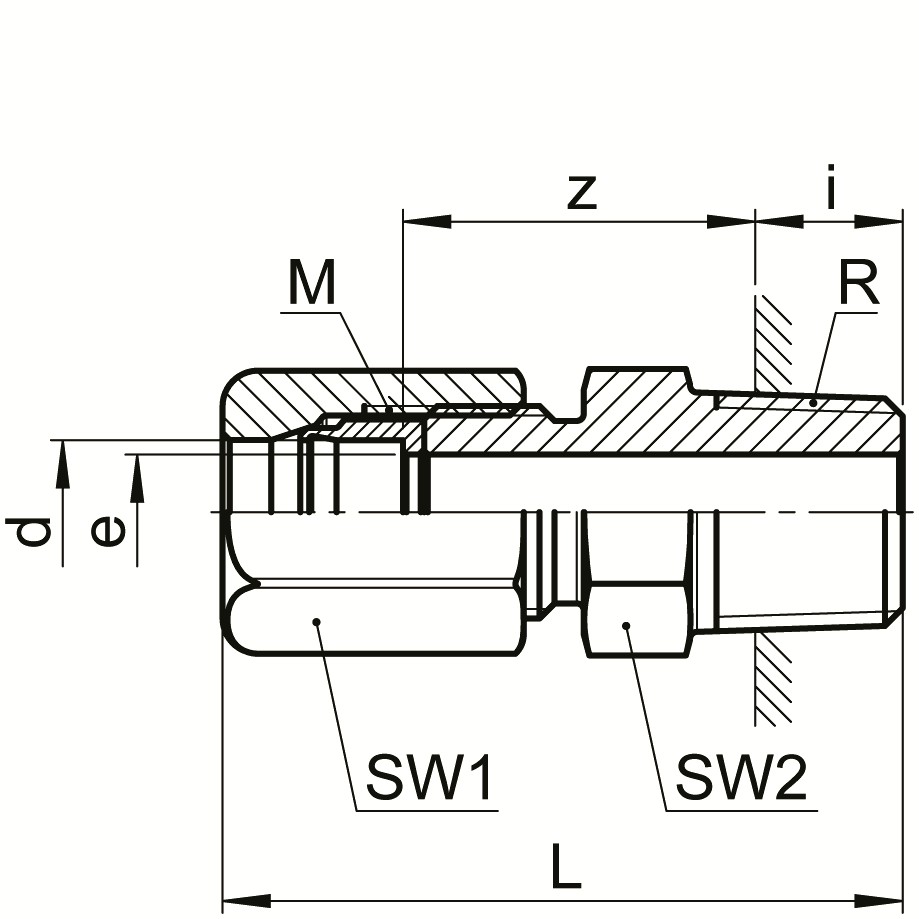

Artikel nummer	VVS-nummer	d	R	bar	L	z	M	e	SW1	SW2	i
0581101020		2	1/8	250	22.5	14	6 x 0,75	1.5	8	10	5
0581101040		3	1/8	250	24	14	6 x 0,75	2.2	8	10	5
0581101060		4	1/8	250	26.5	16.5	8 x 1	3.5	10	10	5
0581101065		4	1/4	200	35	19	10 x 1	3.5	12	14	8
0581101082		5	1/8	250	27	16	8 x 1	3.5	10	10	5
0581101084		5	1/4	200	35	19	10 x 1	4	12	14	8
0581101100		6	1/8	200	29	16	10 x 1	4.5	12	10	5
0581101110		6	1/4	200	35	19	10 x 1	4.5	12	14	8
0581101120		6	3/8	200	35	19	10 x 1	4.5	12	17	8
0581101125		6	1/2	200	40	22	10 x 1	4.5	12	22	10
0581101160		8	1/8	200	30.5	17	12 x 1	6	14	12	5
0581101170		8	1/4	200	37	20.5	12 x 1	6.5	14	14	8
0581101180		8	3/8	200	37	20.5	12 x 1	6.5	14	17	8
0581101185		8	1/2	200	42	23.5	12 x 1	6.5	14	22	10
0581101270		10	1/4	160	39.5	20	14 x 1	8.5	17	14	8
0581101280		10	3/8	160	39.5	20	14 x 1	8.5	17	17	8
0581101285		10	1/2	160	44.5	23	14 x 1	8.5	17	22	10
0581101290	(VVS 033502.118)	10	3/4	100	46.5	23	14 x 1	8.5	17	27	12
0581101380		12	1/4	160	40	20	16 x 1	8.5	19	17	8
0581101390		12	3/8	160	40	20	16 x 1	10	19	17	8
0581101400		12	1/2	160	45	23	16 x 1	10	19	22	10
0581101504		14	1/2	100	49.5	25.5	20 x 1,5	12	24	22	10
0581101532		15	3/8	100	44.5	22.5	20 x 1,5	10.5	24	22	8
0581101534		15	1/2	100	49.5	25.5	20 x 1,5	13	24	22	10
0581101536		15	3/4	100	53	25.5	24 x 1,5	13	30	27	12
0581101566		16	1/2	100	52	26.5	24 x 1,5	13.5	30	24	10
0581101568		16	3/4	100	53	25.5	24 x 1,5	14	30	27	12
0581101646		18	1/2	100	52	26.5	24 x 1,5	13.5	30	24	10
0581101648		18	3/4	100	53	25.5	24 x 1,5	15	30	27	12
0581101768		22	3/4	64	56.5	25.5	28 x 1,5	19	32	30	12
0581101850		28	1	40	64.5	31	36 x 2	24	41	36	14
0581101045		3.2	1/8	250	24	13	6 x 0,75	2.2	8	10	5
0581101135		6.35	1/8	200	29	16	10 x 1	4.5	12	10	5
0581101140		6.35	1/4	200	35	19	10 x 1	4.5	12	14	8
0581101145		6.35	3/8	200	35	19	10 x 1	4.5	12	17	8
0581101150		6.35	1/2	200	40	22	10 x 1	4.5	12	22	10
0581101230		9.52	1/4	160	34	20	14 x 1	8	17	14	8
0581101235		9.52	3/8	160	40	20	14 x 1	8	17	17	8
0581101240		9.52	1/2	160	45	23	14 x 1	8	17	22	10
0581101434		12.7	1/2	100	49	25.5	20 x 1,5	11	24	22	10
0581101474		13.5	1/2	100	49.5	25.5	20 x 1,5	12	24	22	10
0581101616		17.2	1/2	100	52	26.5	24 x 1,5	13.5	30	24	10
0581101620		17.2	3/4	100	53	25.5	24 x 1,5	15	30	27	12
0581101738		21.3	3/4	64	56.5	25.5	28 x 1,5	19	32	30	12
