SO 53621

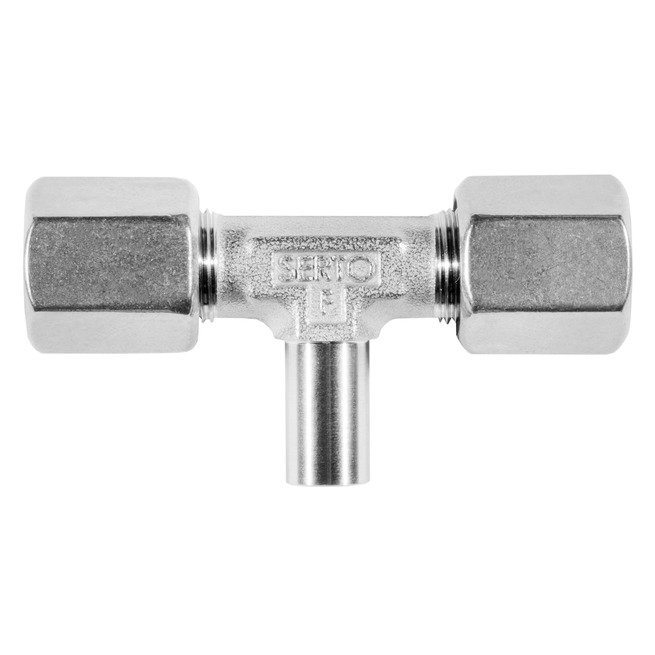

Rustfri 316Ti Fitting – Serto

Syrefast T-stykke, stilbar
  • Syrefast Unionskobling
  • T-stykke
  • Stilbar
  • AISI316Ti, 1.4571
Vis alle mål +

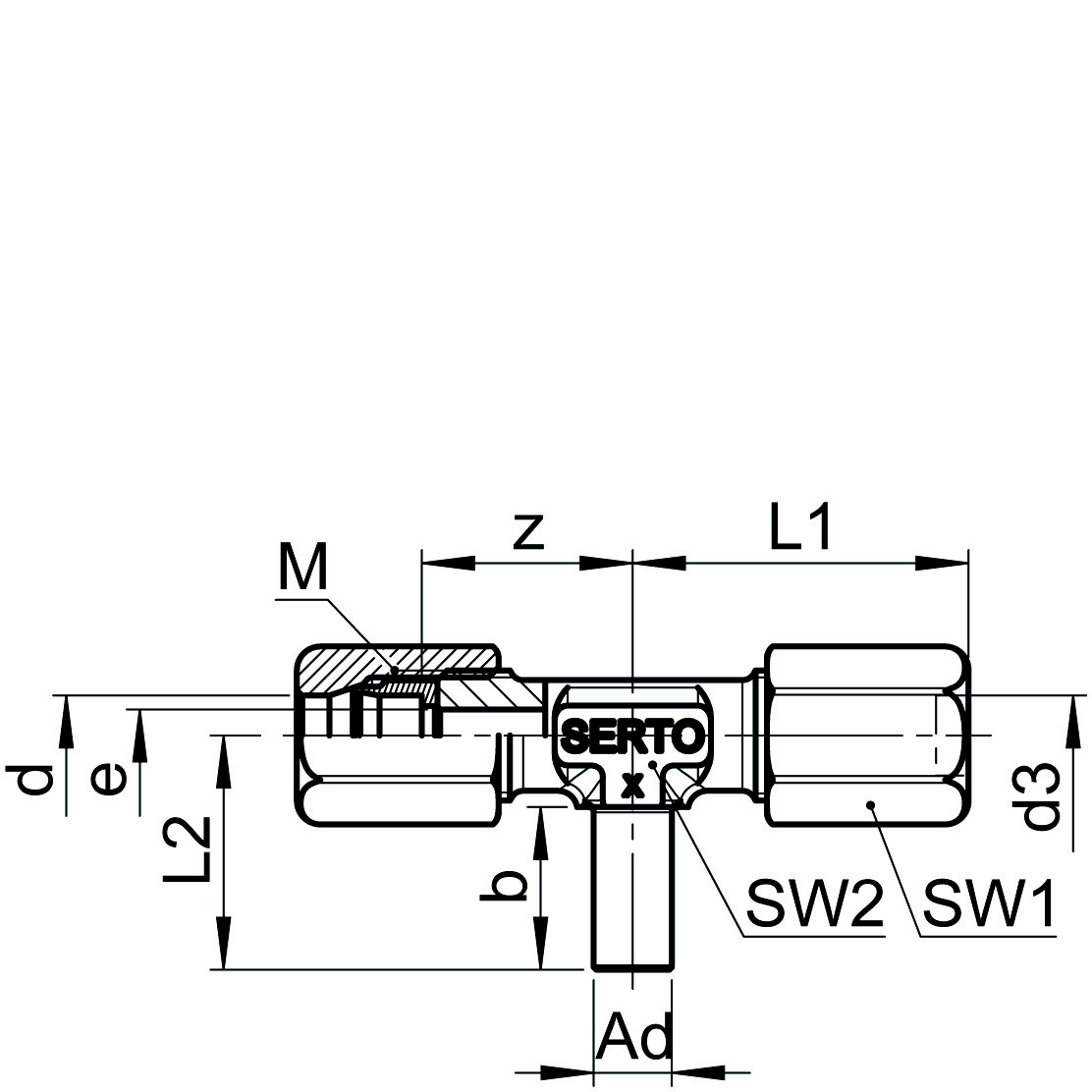

Artikel nummer VVS-nummer d1xAdxd3barMSW2SW1L1bzL2eFiler
0583600045 4×A6×420010×191223.512.516183.5
0583600053 5×A6×520010×191223.512.516184
0583600060 6×A6×620010×191223.512.516184
0583600063 6×A8×620012×1101426.51518234.5
0583600067 6,35×A6×6,3520010×191223.512.516184
0583600070 6,35×A8×6,3520012×1101426.51518234.5
0583600080 8×A8×820012×1101426.51518236
0583600083 8×A10×816014×1121731.51720.525.56.5
0583600100 10×A10×1016014×1121731.51720.525.57
Datablad
