NIFE-AS-RC

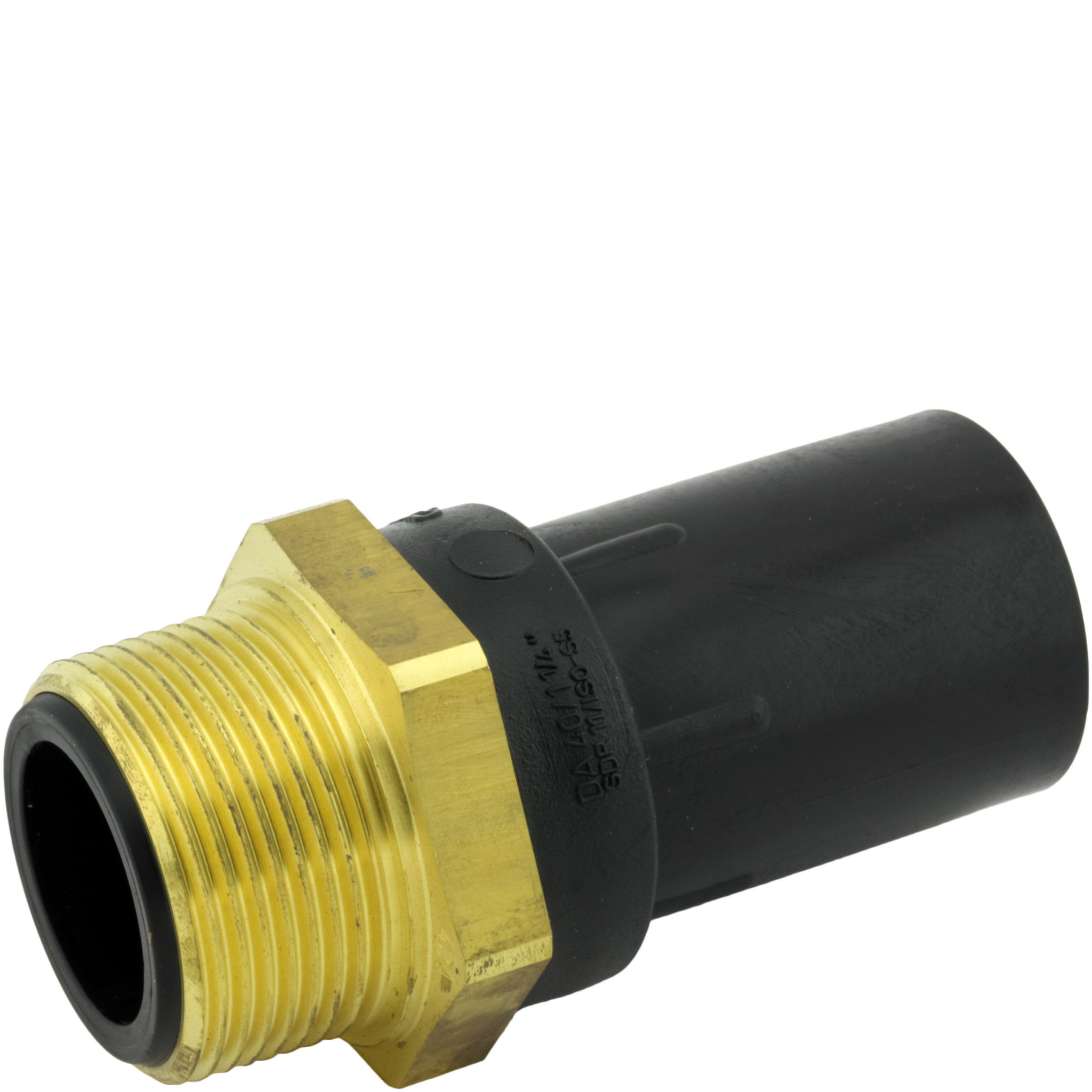

PE100-RC Overgang, udv. messing gevind SDR11 PN16

  • PE100-RC Overgang
  • Udvendigt messing gevind
  • Til stuk-, muffe- og elektromuffesvejsning
  • På forespørgsel i Galvaniseret stål
  • SDR11
  • Vand PN16
  • Gas PN10
  • Hvis artikelnummeret indeholder RC, så er materialet PE100-RC
  • EN12201, Nordic Polymark, DK-VAND
Vis alle mål +

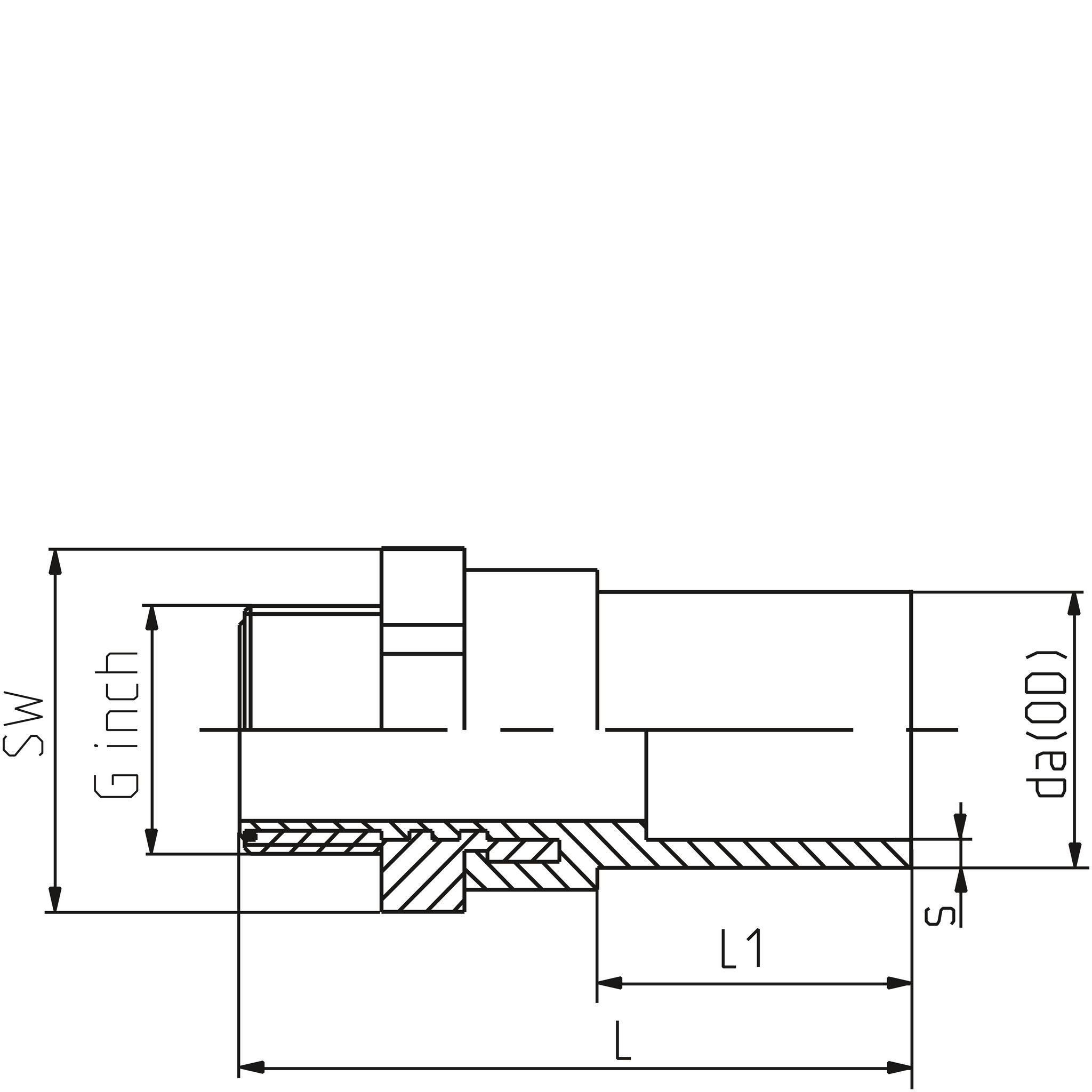

Artikel nummer VVS-nummer Dimensionda(OD)sLL1SWGFiler
NIFE-AS-RC-020-R015 077880420 20×1/2203814032½ CAD/Step
NIFE-AS-RC-025-R020 077880425 25×3/4253854336¾ CAD/Step
NIFE-AS-RC-032-R015 077880430 32x1/2323884641½ CAD/Step
NIFE-AS-RC-032-R020 077880431 32x3/4323904641¾ CAD/Step
NIFE-AS-RC-032-R025 077880432 32×13239246411 CAD/Step
NIFE-AS-RC-032-R032 077880433 32x1¼323954641 CAD/Step
NIFE-AS-RC-032-R040 077880434 32x1½323974641 CAD/Step
NIFE-AS-RC-040-R025 077880439 40x1403.79951501 CAD/Step
NIFE-AS-RC-040-R032 077880440 40x1¼403.71005150 CAD/Step
NIFE-AS-RC-040-R040 077880441 40x1½403.71035150 CAD/Step
NIFE-AS-RC-040-R050 077880442 40x2403.710751502 CAD/Step
NIFE-AS-RC-050-R025 077880448 50x1504.610557601 CAD/Step
NIFE-AS-RC-050-R032 077880449 50x1¼504.61075760 CAD/Step
NIFE-AS-RC-050-R040 077880450 50x1½504.61095760 CAD/Step
NIFE-AS-RC-050-R050 077880451 50x2504.611457602 CAD/Step
NIFE-AS-RC-063-R032 077880461 63x1¼635.81176570 CAD/Step
NIFE-AS-RC-063-R040 077880462 63x1½635.81216570 CAD/Step
NIFE-AS-RC-063-R050 077880463 63×2635.812465702 CAD/Step
Datablad
