S22E17

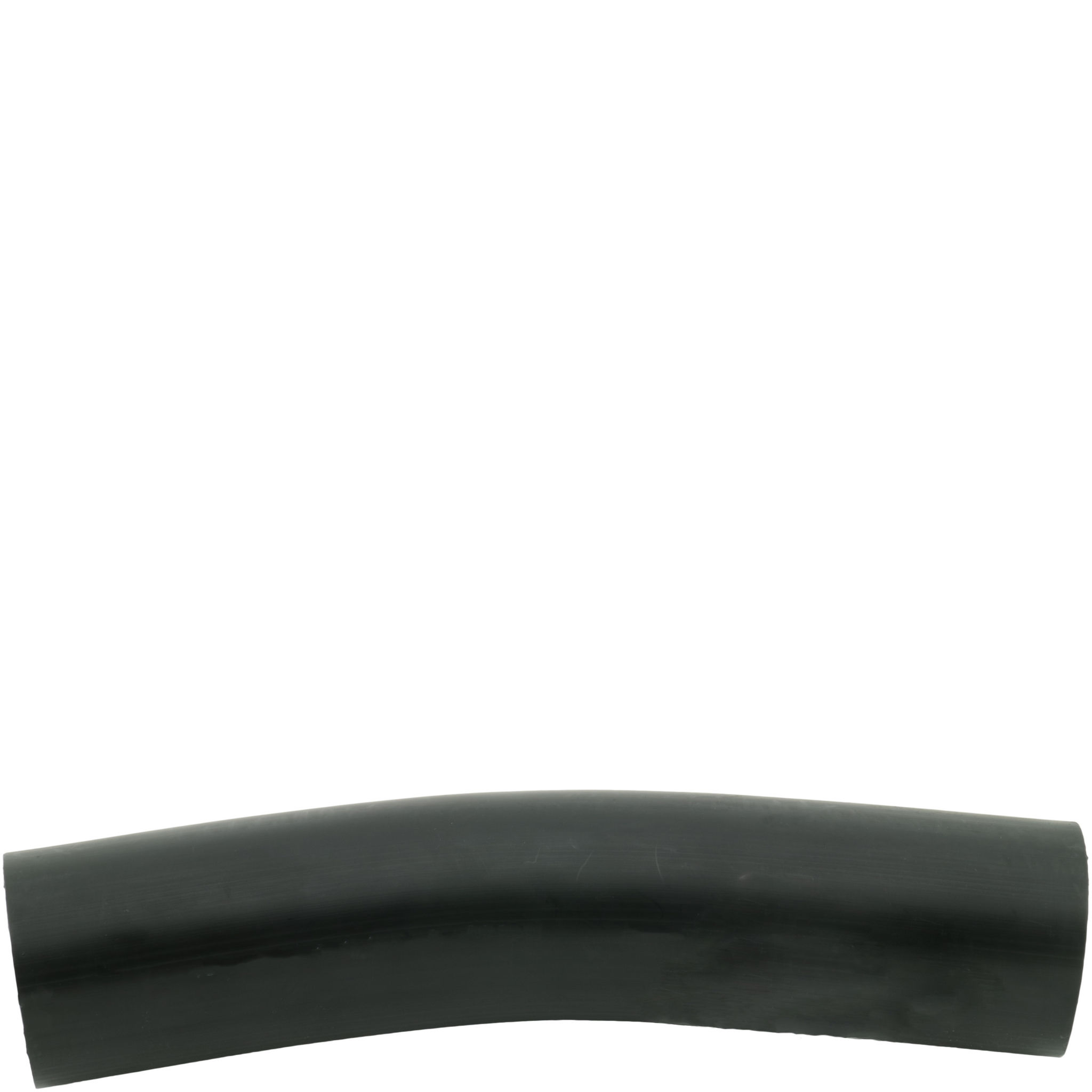

PE100 Bøjning 22° SDR17 PN10 trukket af rør

  • PE100-RC Bøjning 22°
  • Trukket af rør
  • SDR17
  • Vand PN10, Gas PN6
  • Indeholder artikelnummeret RC, så er materialet PE100-RC
  • EN12201, Nordic Polymark, DK-VAND
Vis alle mål +
Artikel nummer VVS-nummer deSDRZLRSFiler
S22E17-RC-090 77745090 90SDR173401501355.4 CAD/Step
S22E17-RC-110 77745110 110SDR173301501656.6 CAD/Step
S22E17-RC-125 77745125 SDR173801501887.4 CAD/Step
S22E17-RC-140 77745140 140SDR173951502108.3 CAD/Step
S22E17-RC-160 77745160 SDR174201504809.5 CAD/Step
S22E17-RC-180 77745180 180SDR1745015027010.7 CAD/Step
S22E17-RC-200 77745200 200SDR1748015030011.9 CAD/Step
S22E17-RC-225 77745225 225SDR1751015033813.4 CAD/Step
S22E17-RC-250 77745250 250SDR1754025037514.8 CAD/Step
S22E17-RC-315 77745315 315SDR1750030049618.7 CAD/Step
S22E17-RC-280 77745280 SDR1745025042016.6 CAD/Step
S22E17-RC-355 77745355 SDR1759030056021.1 CAD/Step
S22E17-RC-400 77745400 SDR1765030063723.7 CAD/Step
S22E17-RC-450 77745450 SDR1770030071126.7 CAD/Step
S22E17-RC-500 77745500 SDR1775035078329.7 CAD/Step
S22E17-RC-560 77745560 SDR1780035087733.2 CAD/Step
S22E17-RC-630 77745630 SDR1785035095537.4 CAD/Step
Datablad
Produktblad
