TDE17-RC

PE100-RC T-stykke SDR17 PN10

  • PE100-RC T-stykke 90°
  • Korte ender
  • SDR17
  • Vand PN10 Gas PN6
  • Hvis artikelnummeret indeholder RC, så er materialet PE100-RC
  • EN12201, Nordic Polymark, DK-VAND
Vis alle mål +

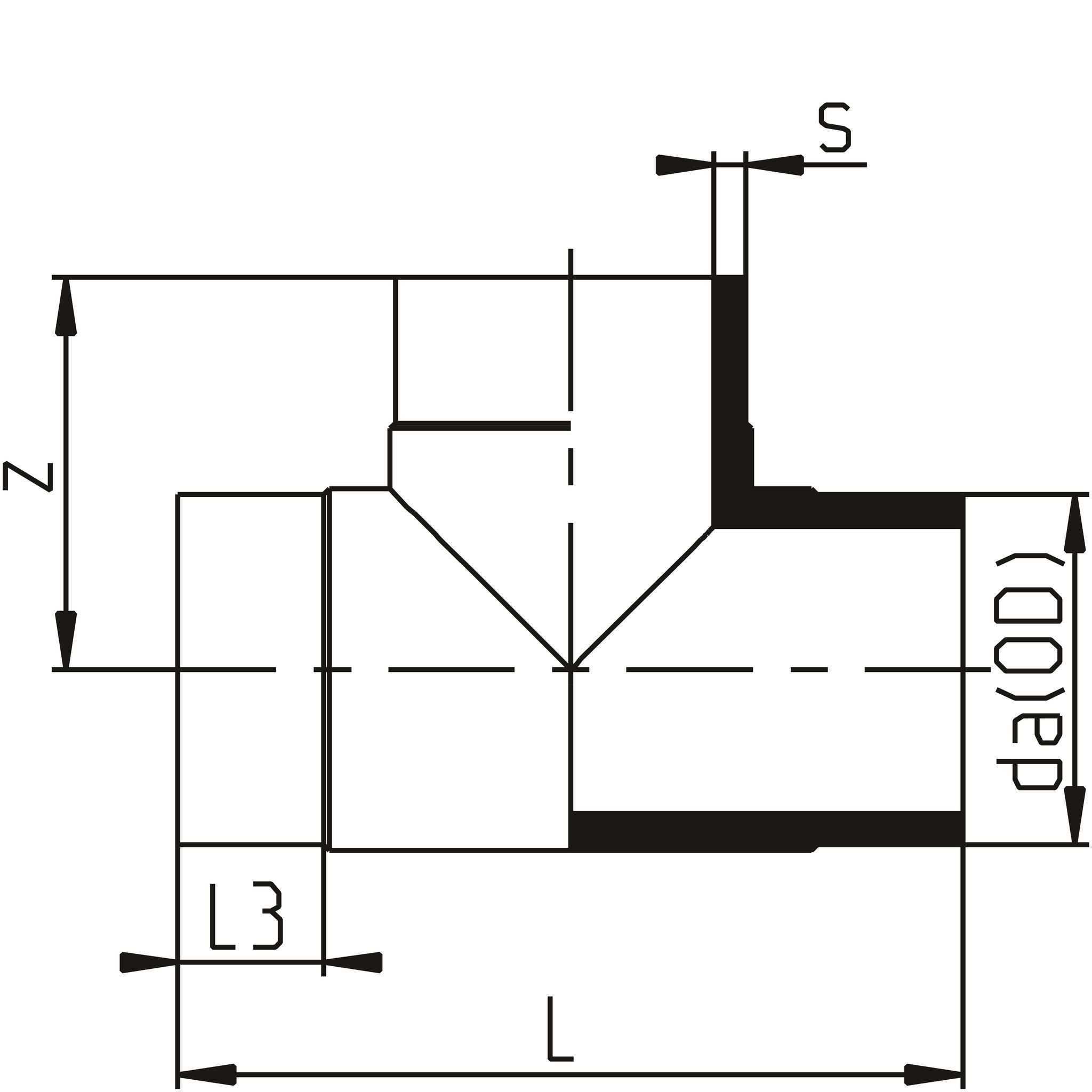

Artikel nummer VVS-nummer da(OD)SDRszLL3Filer
TDE17-050 079134050 50SDR172.95811621
TDE17-RC-050 50SDR1712023
TDE17-063 63SDR173.87314624 CAD/Step
TDE17-RC-063 079134063 63SDR173.87214525 CAD/Step
TDE17-075 75SDR174.58517028 CAD/Step
TDE17-RC-075 079134075 75SDR174.57515016 CAD/Step
TDE17-090 90SDR175.410020023 CAD/Step
TDE17-RC-090 079134090 90SDR175.410721038 CAD/Step
TDE17-110 110SDR176.612024043 CAD/Step
TDE17-RC-110 079134110 110SDR176.612125150.5 CAD/Step
TDE17-125 125SDR177.412525026 CAD/Step
TDE17-RC-125 079134125 125SDR177.413527052 CAD/Step
TDE17-140 140SDR178.314028032 CAD/Step
TDE17-RC-140 079134140 140SDR178.315030054 CAD/Step
TDE17-160 160SDR179.516035040 CAD/Step
TDE17-RC-160 079134160 160SDR179.517034057 CAD/Step
TDE17-180 180SDR1710.719539073 CAD/Step
TDE17-RC-180 079134180 180SDR1710.7182.536557 CAD/Step
TDE17-200 200SDR1711.921543064 CAD/Step
TDE17-RC-200 079134200 200SDR1711.920040057 CAD/Step
TDE17-225 225SDR1713.424549072 CAD/Step
TDE17-RC-225 079134225 225SDR1713.422044057 CAD/Step
TDE17-250 250SDR1714.827555086 CAD/Step
TDE17-RC-250 079134250 250SDR1714.823546770 CAD/Step
TDE17-280 280SDR1716.626753480 CAD/Step
TDE17-RC-280 079134280 280SDR1716.626753480 CAD/Step
TDE17-315 315SDR1718.7350700111 CAD/Step
TDE17-RC-315 079134315 315SDR1718.727554680 CAD/Step
TDE17-RC-355 355SDR17680104
TDE17-RC-400 400SDR17695104
TDE17-RC-450 450SDR17890130
TDE17-RC-500 500SDR17890130
