TRELP17

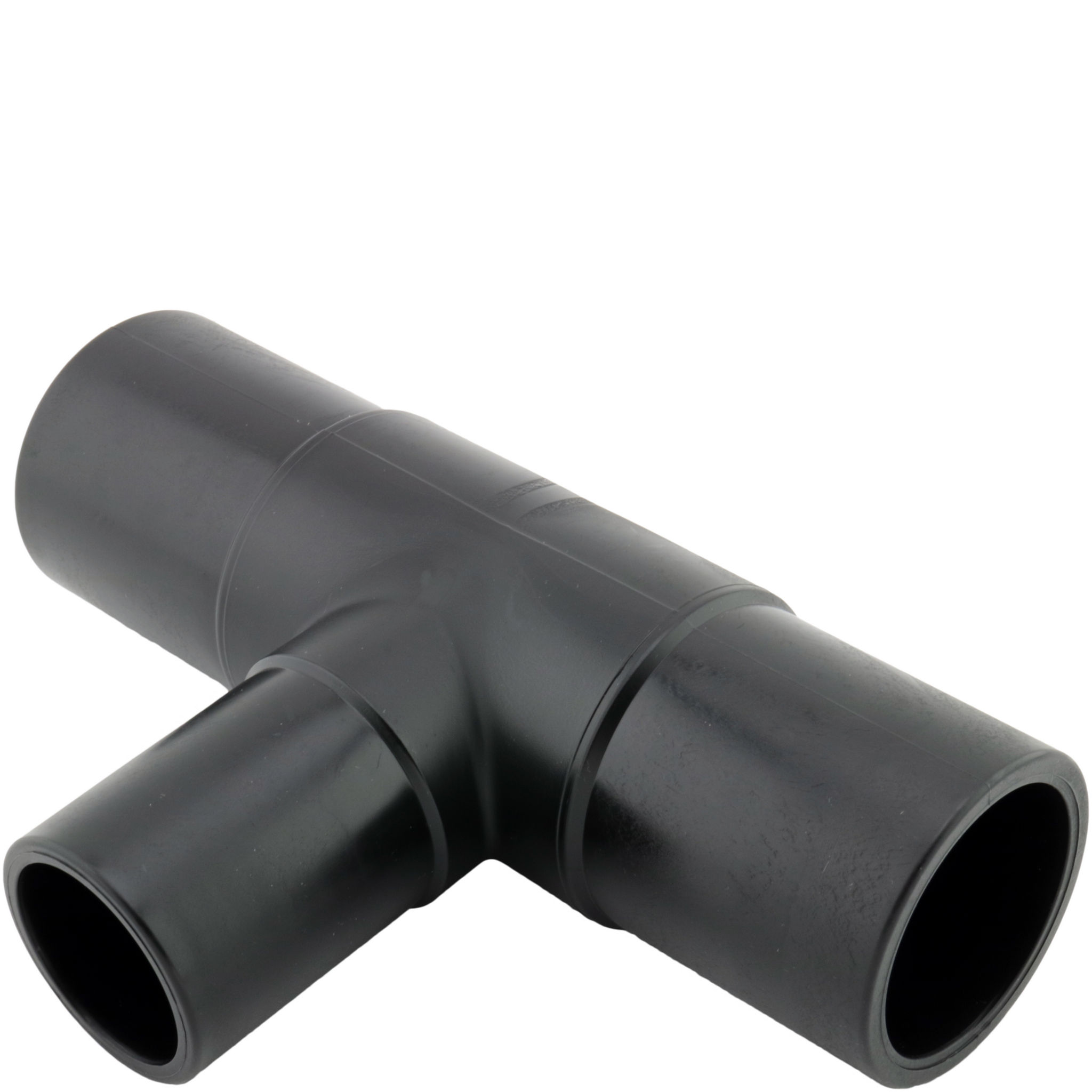

PE100 T-stykke reduceret SDR17 PN10

  • PE100 T-stykke reduceret 90°
  • d355 - 630 mm.
  • Lange ender
  • SDR17
  • Vand PN10 Gas PN6
  • Hvis artikelnummeret indeholder RC, så er materialet PE100-RC
Vis alle mål +

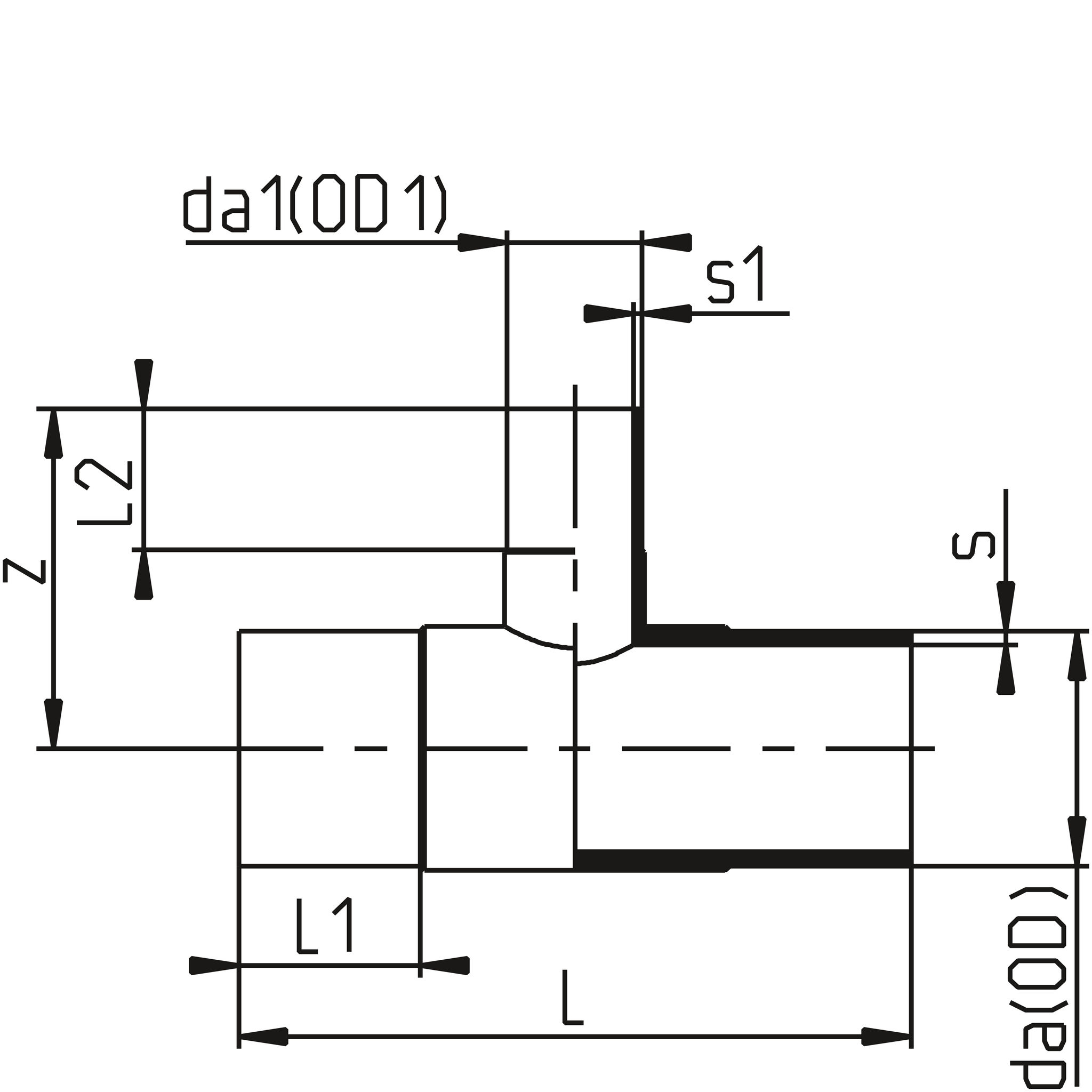

Artikel nummer VVS-nummer da*da1SDRss1LL1Filer
TRELP17-355-110 355x110SDR1721.16.6690180
TRELP17-355-225 355x225SDR1721.113.4674174
TRELP17-355-250 355x250SDR1721.114.8685175
TRELP17-400-110 400x110SDR1723.76.6755190
TRELP17-400-160 400x160SDR1723.79.5755190
TRELP17-400-225 400x225SDR1723.713.4755190
TRELP17-450-160 450x160SDR1726.79.5676197
TRELP17-450-225 450x225SDR1726.713.4765198
TRELP17-450-315 450x315SDR1726.718.7887198
TRELP17-500-160 500x160SDR1729.79.5710215
TRELP17-500-250 500x250SDR1729.714.8815220
TRELP17-560-250 560x250SDR1733.214.8960240
TRELP17-630-160 630x160SDR1737.49.5800255
TRELP17-630-250 630x250SDR1737.414.8875255
Datablad
