RE21U

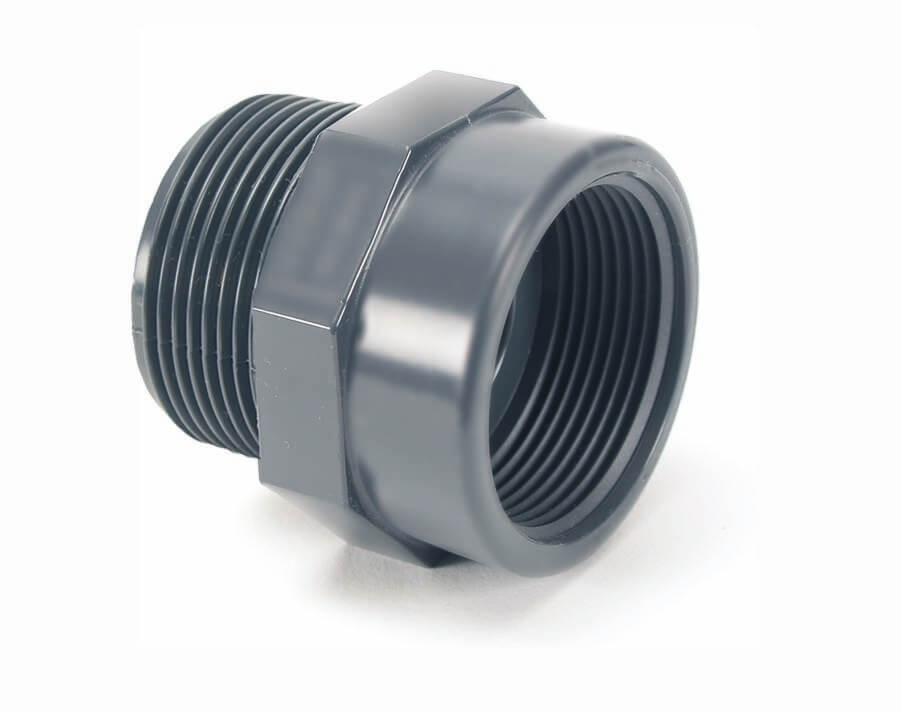

PVC Nippel/Muffe

  • PVC-nippel/muffe reduceret
  • Udvendig gevind / Indvendig gevind
  • Temp: 0-60°C
  • PN16(Ved 20°C)
Vis alle mål +

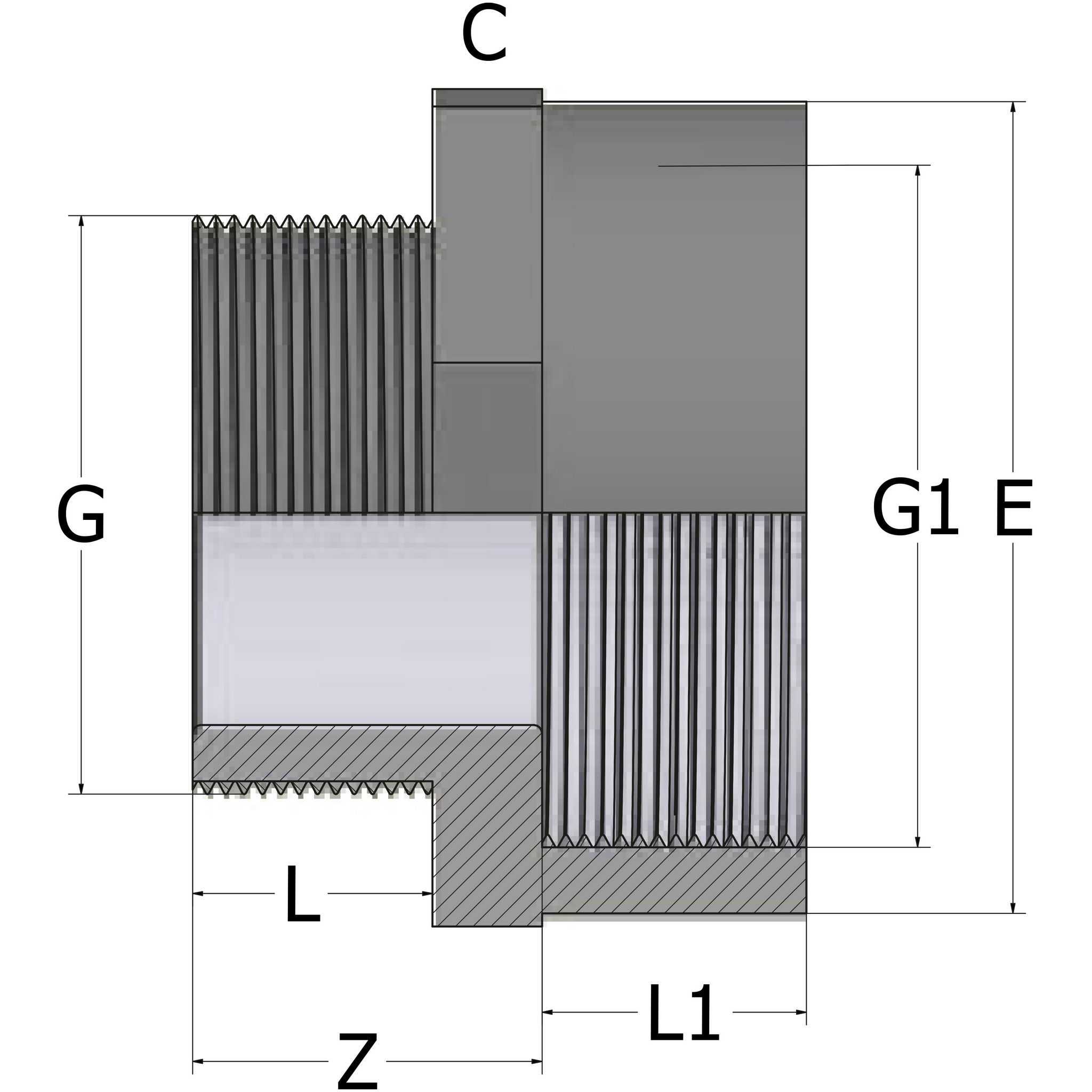

Artikel nummer VVS-nummer GxG1LL1ZCEFiler
RE21U-R015-R020 061262127 1/2"x3/4"1516.32434 CAD/Step
RE21U-R020-R025 061262135 3/4"x1"16.319.12642 CAD/Step
RE21U-R025-R032 061262144 1"x1"1/419.121.43051 CAD/Step
RE21U-R032-R040 061262152 1"x1/4x1"1/221.421.43358 CAD/Step
RE21U-R040-R050 061262160 1"1/2x2"21.425.73472 CAD/Step
RE21U-R050-R065 061262174 2"x2"1/225.730.23889 CAD/Step
RE21U-R065-R080 061262181 2"1/2x3"30.233.344103 CAD/Step
RE21U-R080-R100 061262193 3"x4"33.339.348130 CAD/Step
