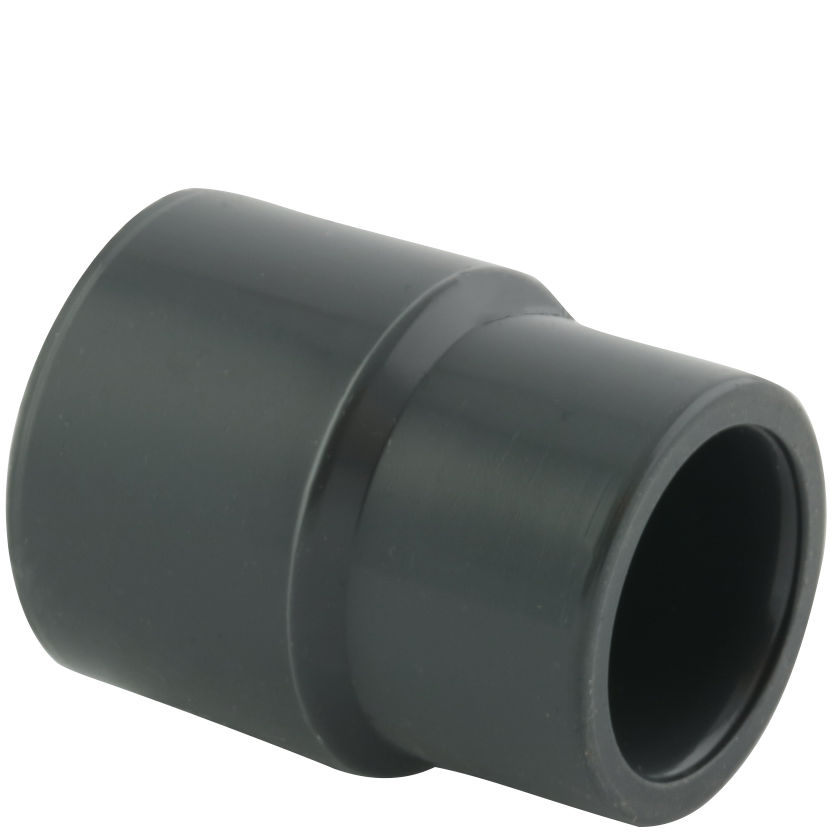

RP20U

PVC Reduktion, Lang Limfitting

  • PVC Reduktion - Lang
  • Indvendig limning
  • Temp: 0-60°C
  • PN16(Ved 20°C)
Vis alle mål +

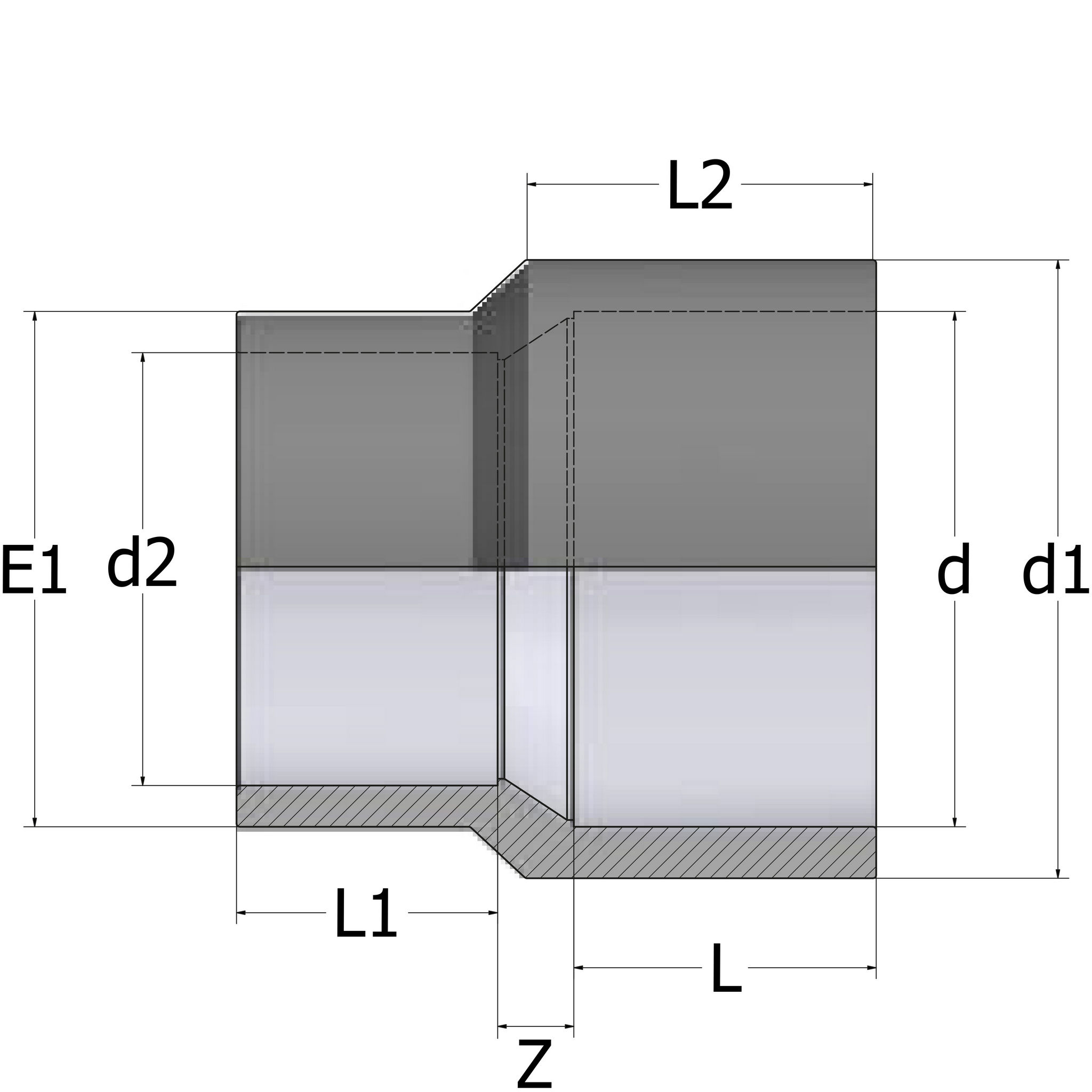

Artikel nummer VVS-nummer dxd1xd2LL1L2ZE1Filer
RP20U-016-012-010-P 061241013 16x12x10
RP20U-025-020-016 061241023 20x25x16161419623
RP20U-025-020-020 061241024 20x25x20161619628
RP20U-032-025-016 061241029 25x32x16191422623
RP20U-032-025-020 061241030 25x32x20191622628
RP20U-032-025-025 061241031 25x32x25191922633
RP20U-040-032-020 061241037 32x40x20221624928
RP20U-040-032-025 061241038 32x40x25221924833
RP20U-040-032-032 061241039 32x40x32222226941
RP20U-050-040-020 061241046 40x50x20261631928
RP20U-050-040-025 061241047 40x50x252819311233
RP20U-050-040-032 061241048 40x50x32282231941
RP20U-050-040-040 061241049 40x50x402626311050
RP20U-063-050-025 061241059 50x63x253219381933
RP20U-063-050-032 061241060 50x63x323122381241
RP20U-063-050-040 061241061 50x63x403126381250
RP20U-063-050-050 061241062 50x63x503131381261
RP20U-075-063-032 061241073 63x75x323822442341
RP20U-075-063-040 061241073 63x75x403826441750
RP20U-075-063-050 061241073 63x75x503831441261
RP20U-075-063-063 061241074 63x75x63383844375
RP20U-090-075-040 061241086 75x90x404426512350
RP20U-090-075-050 061241087 75x90x504431511861
RP20U-090-075-063 061241088 75x90x634438511175
RP20U-090-075-075 061241089 75x90x75444451388
RP20U-110-090-050 061241106 90x110x505131612861
RP20U-110-090-063 061241107 90x110x635138612275
RP20U-110-090-075 061241108 90x110x755144611688
RP20U-110-090-090 061241109 90x110x905151615106
RP20U-160-140-090 061241157 140x160x9076518686106
RP20U-160-140-110 140x160x11076618618129
